Every Java developer has seen it. The stack trace that ends conversations. The production incident that ruins a Friday afternoon. The crash that leads to the post-mortem nobody wants to write.
java.lang.NullPointerException
at com.example.PaymentService.processTransaction(PaymentService.java:47)
at com.example.TransactionController.handle(TransactionController.java:23)
NullPointerException. Three words that have probably cost the industry more money, time, and credibility than any other single class of bug in software history. Tony Hoare, the man who invented the null reference in 1965 while working on ALGOL W, called it his “billion dollar mistake” when he apologised for it at a 2009 software conference. The true cost is almost certainly many multiples of that. And Java, one of the most widely deployed languages on the planet, has been living with the consequences for three decades.
This is the story of null: where it came from, why Java got it so badly wrong, how other languages solved it, what the industry has been forced to build to survive, and why we might finally be approaching a real solution.
1. A Brief History of Nothing
1.1 The Original Sin
In 1965, Tony Hoare was designing the type system for ALGOL W. He needed a way to represent “no value” or “value absent.” The simplest thing he could do was make every reference potentially point to nothing. He introduced the null reference for exactly that reason: it was easy to implement. A single bit could indicate the absence of a value without requiring any changes to the type system itself.
It seemed reasonable at the time. It was not.
The fundamental problem is that null conflates two entirely different concepts. It can mean “this value is intentionally absent,” such as a user who has not provided a middle name. It can mean “this value has not been initialised yet,” which is an implementation detail leaking into the type system. It can mean “this operation failed and returned nothing,” which is an error condition masquerading as a value. By encoding all of these meanings into a single special value, Hoare created a trap that looks like normal code until runtime, at which point it detonates.
1.2 The Language Genealogy
Null propagated through language families the way bad ideas often do: because copying was easier than rethinking. C had null pointers. C++ inherited them. Java, designed in the mid-1990s by James Gosling at Sun Microsystems, made a conscious decision to adopt nullable references for all object types while making primitive types non-nullable. This was considered a reasonable compromise. All primitive types like int, boolean, and double would never be null. All object types would silently be nullable by default.
The JVM was designed around this model. Every reference in Java can hold either a valid object reference or null. The type system has no way to distinguish between a String that could be null and a String that cannot. From the compiler’s perspective, they are identical.
This would prove to be an expensive architectural decision.
1.3 The Scale of the Problem
The numbers are stark. On Android, NullPointerExceptions are the single largest cause of app crashes on Google Play. At Meta, before they built their own null safety tooling, NPEs were a leading crash cause across both alpha and beta channels of their apps. When Meta eventually ran an 18-month migration to make their Instagram Android codebase null-safe, they observed a 27% reduction in production NPE crashes. Individual product teams saw improvements ranging from 35% to 80% after addressing nullness errors found by static analysis.
This is not a niche problem. This is the most common class of production failure in one of the most deployed runtime environments in history.
2. Why Java’s Approach Is Particularly Broken
2.1 The Type System Lies
Java is a statically typed language. This is supposed to mean that type errors are caught at compile time, before code ever runs. But when it comes to nullness, Java’s type system actively lies to you.
Consider this method signature:
public String getUserDisplayName(Long userId)
What does this tell you? It tells you that getUserDisplayName takes a Long and returns a String. What it does not tell you is whether userId can be null. Whether the return value can be null. Whether passing null for userId will throw immediately, return null, or do something undefined. The type system is silent on all of these questions, and yet they are exactly the questions that matter when writing correct code.
Every Java developer learns to live with this uncertainty. You defensive-null-check everything, or you trust documentation that may be wrong, or you read the source code, or you just run it and see what happens. None of these are acceptable engineering practices for a statically typed language, and yet they are universal.
2.2 The Propagation Problem
Consider a simple method taken from Meta’s engineering blog:
Two things can go wrong here that the type system will not warn you about. getParent() can return null, causing an NPE on the chained call. getFileName() can return null, which then propagates out of the method and causes an NPE somewhere else, potentially far removed from this code. The second failure mode is the more dangerous one. When a null propagates across method boundaries, the crash site tells you nothing about where the null originated. You get a stack trace pointing at an innocent consumer that simply expected to receive a valid value.
At the scale of millions of lines of code with thousands of daily commits, manually tracking nullness becomes impossible. A developer making a change to getParent() cannot know which of the thousands of callers have made assumptions about its nullability.
2.3 Java 8’s Half-Measure: Optional
Java 8 introduced java.util.Optional<T> as a partial answer to this problem. The idea was sound: wrap potentially absent values in a container that forces the caller to explicitly handle the absent case.
public Optional<String> getUserDisplayName(Long userId) {
return Optional.ofNullable(userRepository.findById(userId))
.map(User::getDisplayName);
}
But Optional has serious problems in practice. It carries performance overhead, as it creates an additional heap allocation for every value. It cannot be used as a method parameter or field type without creating a significantly worse API. It does not help at all with method parameters, which remain silently nullable. It is not enforced by the compiler, so you can still call optional.get() without checking isPresent() and get an exception anyway. And critically, Optional does nothing about the billions of lines of existing Java code that already exist without it.
Optional was a useful addition for stream pipelines and return types in certain contexts. It was not a solution to null safety.
3. How Other Languages Solved It
3.1 Kotlin: Nullability as a Type System Property
Kotlin, released by JetBrains in 2011 and reaching version 1.0 in 2016, made a clean break from Java’s approach. In Kotlin, nullability is encoded directly in the type. A String is non-null. A String? is nullable. The compiler enforces this distinction everywhere.
fun getUserDisplayName(userId: Long): String? {
return userRepository.findById(userId)?.displayName
}
fun printName(name: String) {
println(name.uppercase()) // safe, name cannot be null
}
val name: String? = getUserDisplayName(42)
printName(name) // compile error: String? cannot pass where String is expected
printName(name ?: "Unknown") // safe: provides default if null
The safe call operator ?. chains operations on nullable values, short-circuiting to null if any intermediate value is null. The Elvis operator ?: provides defaults. Force unwrapping with !! exists but is explicit and visible, making it an obvious code smell to review. The compiler tracks nullability through branches, so after a null check the type is automatically narrowed.
This is what a properly designed null-safe type system looks like. Meta acknowledged this directly in their engineering blog, noting they use Kotlin heavily but face the reality that business-critical Java code cannot be moved to Kotlin overnight, meaning a null-safety solution for Java remains necessary.
3.2 Swift: Optionals Done Right
Apple’s Swift, introduced in 2014, took a similar approach to Kotlin. All types are non-null by default. Optionals are declared with ? and require explicit handling.
var name: String? = nil
if let unwrapped = name {
print(unwrapped.uppercased())
}
// or with guard:
guard let name = name else { return }
print(name.uppercased())
Swift’s optional chaining and pattern matching make working with nullable values ergonomic without sacrificing safety. The compiler refuses to let you use a String? where a String is expected.
3.3 Rust: Absence Without Null
Rust takes the most radical approach: null does not exist. The Option<T> enum fulfils the same role as nullable types in other languages, but because it is a proper algebraic type rather than a special value, the compiler enforces exhaustive handling everywhere.
fn get_user_name(id: u64) -> Option<String> {
// returns Some("Alice") or None
}
match get_user_name(42) {
Some(name) => println!("Hello, {}", name),
None => println!("User not found"),
}
You cannot use an Option<String> where a String is needed. You cannot forget to handle the None case. The type system makes it structurally impossible.
3.4 C# 8+: Nullable Reference Types
C# took the pragmatic path that Java should have taken earlier: they retrofitted nullable reference type tracking onto an existing language. From C# 8.0, you can enable nullable reference types, after which:
The compiler warns when you use a nullable reference without a null check, and when you assign null to a non-nullable reference. It is opt-in at the project or file level, allowing gradual migration of existing codebases. This is the model Java is now slowly following.
4. What the Industry Built to Survive
When a language fails to provide safety guarantees, engineers build tools. The Java ecosystem has accumulated a remarkable collection of null-safety tools, which is both impressive and a damning indictment of the underlying language.
4.1 Annotations and the Fragmentation Problem
The most straightforward approach has been annotation-based contracts: mark parameters and return values with @Nullable or @NotNull and let IDEs and static analysers enforce the contracts.
The problem is that there has never been a standard. JSR-305 attempted to define standard nullability annotations but was abandoned without resolution. The result has been years of incompatible annotation namespaces:
javax.annotation.Nullable and javax.annotation.Nonnull from JSR-305
org.jetbrains.annotations.Nullable and org.jetbrains.annotations.NotNull
org.springframework.lang.Nullable and org.springframework.lang.NonNull
edu.umd.cs.findbugs.annotations.Nullable from FindBugs/SpotBugs
These annotations have subtly different semantics. Tools that understand one may not understand another. Libraries annotated with JetBrains annotations do not interoperate cleanly with CheckerFramework analysis. A codebase that uses Spring’s annotations cannot rely on IntelliJ’s understanding of those annotations in the same way. The fragmentation has been a genuine obstacle to ecosystem-wide null safety.
4.2 Meta’s Nullsafe: Industrial Scale Engineering
Meta’s approach, documented in their 2022 engineering blog post, is the most instructive example of what a large organisation is forced to build when the language does not provide adequate tools.
In 2019, Meta started the 0NPE project with the goal of significantly improving null-safety of Java code through static analysis. Over two years, they built Nullsafe, a static analyser for detecting NPE errors, integrated it into their developer workflow, and ran a large-scale transformation to make many millions of lines of Java code compliant.
The Nullsafe analyser works by extending Java’s type checking with an additional pass that performs flow-sensitive nullness analysis. It uses two core data structures: the abstract syntax tree for type checking and a control flow graph for type inference. The inference phase determines nullness at every program point. The checking phase validates that the code never dereferences a nullable value or passes a nullable argument where non-null is required.
A critical design decision was supporting flow-sensitive typing. When you write if (x != null), Nullsafe narrows the type of x to non-null inside the branch. This is essential for the tool to be usable without requiring excessive annotation burden.
To deal with millions of lines of legacy code, Meta introduced a three-tier model. Tier 1 is fully Nullsafe-compliant code marked with @Nullsafe. Tier 2 is internal first-party code not yet compliant, checked optimistically. Tier 3 is unvetted third-party code, checked pessimistically. This tiered approach was essential for gradual rollout without requiring a “big bang” migration that would be impossible at their scale.
The results were meaningful. Instagram’s Android codebase went from 3% to 90% Nullsafe-compliant over 18 months. Production NPE crashes dropped by 27%. Individual team improvements ranged from 35% to 80%. NPEs were no longer the leading crash cause in alpha and beta channels.
Meta’s experience underscores two things. First, static analysis for null safety works. It delivers measurable, material improvements in production reliability. Second, the scale of engineering required to achieve this on top of an uncooperative language is substantial. The checker, the tiered compliance model, the tooling integration, the migration automation, the developer adoption program: all of this is infrastructure that should not need to exist.
4.3 JSpecify: An Attempt at Standardisation
The annotation fragmentation problem eventually became painful enough that a cross-industry working group formed to address it. JSpecify started in 2019 as a collaboration between Google, JetBrains, Uber, Oracle, Meta, and others. Its goal was to define a single, semantically precise set of nullability annotations that all tools and IDEs could agree on.
JSpecify 1.0 was released in 2024, defining four core annotations:
@Nullable marks a type as potentially null. @NonNull marks a type as never null. @NullMarked applied to a package, class, or module makes all unannotated types non-null by default, dramatically reducing annotation noise. @NullUnmarked cancels @NullMarked for a scope, useful for legacy code or interop boundaries.
The key innovation of @NullMarked is that it inverts the default. Instead of everything being implicitly nullable unless annotated, everything in a @NullMarked scope is implicitly non-null unless annotated with @Nullable. This means you only need to annotate the unusual case, which in well-designed APIs is the minority.
@NullMarked
package com.example.service;
// In this package, String means non-null String
// @Nullable String means nullable String
public class UserService {
public String getDisplayName(Long userId) {
// return type is non-null, compiler enforces this
return userRepository.findById(userId)
.map(User::getDisplayName)
.orElse("Unknown");
}
public @Nullable User findUser(Long userId) {
// explicitly nullable return
return userRepository.findById(userId).orElse(null);
}
}
Uber’s NullAway tool, Google’s ErrorProne, IntelliJ IDEA, and the CheckerFramework have all added JSpecify support. The ecosystem is converging on this standard, but convergence is not the same as a language-level solution.
5. Spring Framework 7 and the Java 25 Connection
The Spring Framework’s evolution on this issue illustrates the broader Java ecosystem trajectory well.
Spring has had its own @Nullable and @NonNull annotations in org.springframework.lang for years. These were based on JSR-305 meta-annotations and gave IDE integration a fighting chance at understanding Spring’s nullability contracts. But they were Spring-specific and did not interoperate cleanly with other tools.
Spring Framework 7, released in late 2025 targeting Java 25, makes a decisive move. It adopts JSpecify as its nullability annotation standard, deprecating the old JSR-305-based approach. This is significant. Spring is the dominant Java application framework. Its adoption of JSpecify sends an unambiguous signal about which standard wins. If you write Spring applications and you want null-safety tooling to actually work across your entire stack including the framework layer, JSpecify is now the path.
The Spring 7 move also reflects an important reality: Java 25 is not just a runtime version, it is likely a turning point for null safety at the language level. Project Valhalla, which introduces value types to the JVM, needs to know which types can be null and which cannot in order to inline value type instances. This creates a direct JVM-level incentive for Java to develop a real nullness story in the type system rather than delegating it entirely to annotations and static analysis.
The trajectory suggests that JSpecify annotations today may well be forward-compatible with native language-level null safety when it arrives, because the semantic model is intentionally designed to align with that future.
6. The Road Ahead: Project Valhalla and Draft JEPs
Project Valhalla has introduced the concept of null-restricted types via a Draft JEP. A null-restricted type would be a reference type that the compiler guarantees can never hold null. The proposed syntax uses !:
String! name = "Alice"; // cannot be null, enforced at compile time
name = null; // compile error
This would bring Java to parity with Kotlin’s type system distinction. Combined with JSpecify providing the ecosystem standard for annotation-based nullability today, the path is becoming clear:
Adopt @NullMarked in your packages now, marking your APIs explicitly with @Nullable where absence is genuinely meaningful.
Use NullAway, CheckerFramework, or IntelliJ’s nullness analysis to catch violations at compile time.
Integrate JSpecify annotations and benefit from interoperability with Spring 7 and other ecosystem libraries that adopt the same standard.
Position yourself for native language-level null safety when Project Valhalla delivers it.
7. What This Means in Practice
The practical takeaway is actionable and straightforward.
The first step is adopting @NullMarked at the package or module level in new code. This makes non-null the default, which is almost always what you want, and forces explicit thought about the cases where null is genuinely meaningful.
The second step is integrating a static analyser that understands JSpecify. NullAway with ErrorProne is the lowest-friction option for most build systems. IntelliJ’s built-in analysis understands JSpecify annotations. Neither requires significant infrastructure investment.
The third step is treating null propagation as a design smell rather than a normal programming pattern. If a method returns null, ask whether Optional better expresses intent for return types, or whether @Nullable plus a static check is the right approach. If a parameter accepts null to mean different things depending on context, consider separate methods instead.
The fourth step, applicable if you are on a large existing Java codebase similar to what Meta faced, is incremental migration. Start with new code fully annotated and compliant. Mark boundaries between annotated and unannotated code explicitly. Build compliance metrics into your engineering metrics and track progress systematically.
8. Closing Thoughts
Tony Hoare apologised for null in 2009 because he had spent decades watching the consequences compound. Java made the situation worse by adopting nullable references universally with no language-level distinction between “could be null” and “definitely not null,” and then effectively doing nothing about it for 25 years.
The industry has compensated with extraordinary engineering. Meta built a company-wide static analyser. Uber built NullAway. The JSpecify working group spent six years producing a 1.0 annotation standard. Spring Framework rebuilt its entire nullability strategy. IntelliJ added increasingly sophisticated null tracking. None of this should have been necessary.
But here is the honest assessment: the situation is genuinely improving. JSpecify provides the ecosystem with a common language for the first time. Major tools and frameworks are converging on it. Project Valhalla may deliver language-level enforcement in a future Java release. Spring 7’s adoption of JSpecify on Java 25 is the clearest signal yet that the ecosystem is moving in a coherent direction.
If your Java codebase is not using nullability annotations and a static null checker today, you are accepting a category of production risk that is entirely preventable with tools that are freely available right now. The billion dollar mistake does not have to keep costing you.
The language should have solved this 30 years ago. In the absence of that, the ecosystem has built a workable path. It is time to walk it.
References: Tony Hoare, “Null References: The Billion Dollar Mistake” (QCon London, 2009). Meta Engineering: “Retrofitting null-safety onto Java at Meta” (engineering.fb.com, 2022). Sébastien Deleuze, “Null Safety in Java with JSpecify and NullAway” (Spring I/O, 2025). Heise Developer: “Spring Framework 7 brings new concept for null safety and relies on Java 25” (heise.de, 2025). JSpecify 1.0 specification (jspecify.dev).

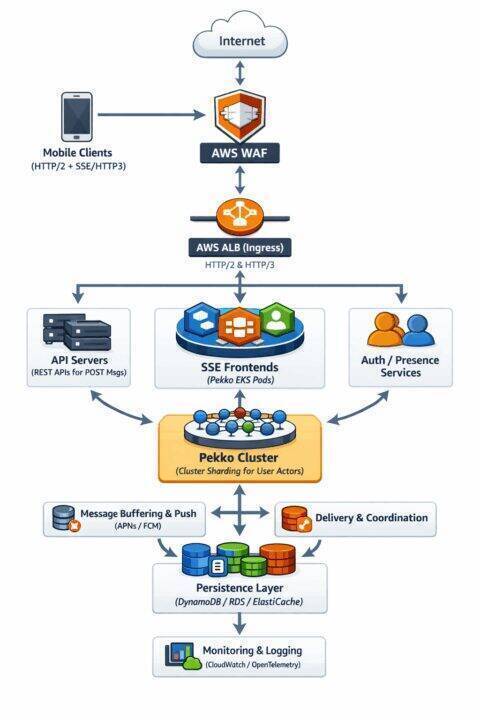

Real time mobile chat represents one of the most demanding challenges in distributed systems architecture. Unlike web applications where connections are relatively stable, mobile clients constantly transition between networks, experience variable latency, and must conserve battery while maintaining instant message delivery. This post examines the architectural decisions behind building mobile chat at massive scale, the problems each technology solves, and the tradeoffs involved in choosing between alternatives.
1. Understanding the Mobile Chat Problem
Before evaluating solutions, architects must understand precisely what makes mobile chat fundamentally different from other distributed systems challenges.
1.1 The Connection State Paradox
Traditional stateless architectures achieve scale through horizontal scaling of identical, interchangeable nodes. Load balancers distribute requests randomly because any node can handle any request. State lives in databases, and the application tier remains stateless.
Chat demolishes this model. When User A sends a message to User B, the system must know which server holds User B’s connection. This isn’t a database lookup; it’s a routing decision that must happen for every message, in milliseconds, with perfect consistency across your entire cluster.
At 100,000 concurrent connections, you might manage with a centralised routing table in Redis. Query Redis for User B’s server, forward the message, done. At 10 million connections, that centralised lookup becomes the bottleneck. Every message requires a Redis round trip. Redis clustering helps but doesn’t eliminate the fundamental serialisation point.
The deeper problem is consistency. User B might disconnect and reconnect to a different server. Your routing table is now stale. With mobile users reconnecting constantly due to network transitions, your routing information is perpetually outdated. Eventually consistent routing means occasionally lost messages, which users notice immediately.
1.2 The Idle Connection Problem
Mobile usage patterns create a unique resource challenge. Users open chat apps, exchange a few messages, then switch to other apps. The connection often remains open in the background for push notifications and presence updates. At scale, you might have 10 million “connected” users where only 500,000 are actively messaging at any moment.
Your architecture must provision resources for 10 million connections but only needs throughput capacity for 500,000 active users. Traditional thread per connection models collapse here. Ten million OS threads is impossible; the context switching alone would consume all CPU. But you need instant response when any of those 10 million connections becomes active.
This asymmetry between connection count and activity level is fundamental to mobile chat and drives many architectural decisions.
1.3 Network Instability as the Norm
Mobile networks are hostile environments. Users walk through buildings, ride elevators, transition from WiFi to cellular, pass through coverage gaps. A user walking from their office to a coffee shop might experience dozens of network transitions in fifteen minutes.
Each transition is a potential message loss event. The TCP connection over WiFi terminates when the device switches to cellular. Messages queued for delivery on the old connection are lost unless your architecture explicitly handles reconnection and replay.
Desktop web chat can treat disconnection as exceptional. Mobile chat must treat disconnection as continuous background noise. Reconnection isn’t error recovery; it’s normal operation.
1.4 Battery, Backgrounding, and the Wakeup Problem
Every network operation consumes battery. Maintaining a persistent connection keeps the radio active, draining battery faster than almost any other operation. The mobile radio state machine makes this worse: transitioning from idle to active takes hundreds of milliseconds and significant power. Frequent small transmissions prevent deep sleep, causing battery drain disproportionate to data transferred.
But the real architectural complexity emerges when users background your app.
1.4.1 What Happens When Apps Are Backgrounded
iOS and Android aggressively manage background applications to preserve battery and system resources. When a user switches away from your chat app:
iOS Behaviour: Apps receive approximately 10 seconds of background execution time before suspension. After suspension, no code executes, no network connections are maintained, no timers fire. The app is frozen in memory. iOS will terminate suspended apps entirely under memory pressure without notification.
Android Behaviour: Android is slightly more permissive but increasingly restrictive with each version. Background execution limits (introduced in Android 8) prevent apps from running background services freely. Doze mode (Android 6+) defers network access and background work when the device is stationary and screen off. App Standby Buckets (Android 9+) restrict background activity based on how recently the user engaged with the app.
In both cases, your carefully maintained SSE connection dies when the app backgrounds. The server sees a disconnect. Messages arrive but have nowhere to go.
1.4.2 Architectural Choices for Background Message Delivery
You have three fundamental approaches when clients are backgrounded:
Option 1: Push Notification Relay
When the server detects the SSE connection has closed, buffer incoming messages and send push notifications (APNs for iOS, FCM for Android) to wake the device and alert the user.
Advantages: Works within platform constraints. Users receive notifications even with app completely terminated. No special permissions or background modes required.
Disadvantages: Push notifications are not guaranteed delivery. APNs and FCM are best effort services that may delay or drop notifications under load. You cannot stream message content through push; you notify and wait for the user to open the app. The user experience degrades from real time chat to notification driven interaction.
Architectural implications: Your server must detect connection loss quickly (aggressive keepalive timeouts), maintain per user message buffers, integrate with APNs and FCM, and handle the complexity of notification payload limits (4KB for APNs, varying for FCM).
Option 2: Background Fetch and Silent Push
Use platform background fetch capabilities to periodically wake your app and check for new messages. Silent push notifications can trigger background fetches on demand.
iOS provides Background App Refresh, which wakes your app periodically (system determined intervals, typically 15 minutes to hours depending on user engagement patterns). Silent push notifications can wake the app for approximately 30 seconds of background execution.
Android provides WorkManager for deferrable background work and high priority FCM messages that can wake the app briefly.
Advantages: Better message freshness than pure notification relay. Can sync recent messages before user opens app, improving perceived responsiveness.
Disadvantages: Timing is not guaranteed; the system determines when background fetch runs. Silent push has strict limits (iOS limits rate and will throttle abusive apps). Background execution time is severely limited; you cannot maintain a persistent connection. Users who disable Background App Refresh get degraded experience.
Architectural implications: Your sync protocol must be efficient, fetching only delta updates within the brief execution window. Server must support efficient “messages since timestamp X” queries. Consider message batching to maximise value of each background wake.
Option 3: Persistent Connection via Platform APIs
Both platforms offer APIs for maintaining network connections in background, but with significant constraints.
iOS VoIP Push: Originally designed for VoIP apps, this mechanism maintains a persistent connection and wakes the app instantly for incoming calls. However, Apple now requires apps using VoIP push to actually provide VoIP calling functionality. Apps abusing VoIP push for chat have been rejected from the App Store.
iOS Background Modes: The “remote-notification” background mode combined with PushKit allows some connection maintenance, but Apple reviews usage carefully. Pure chat apps without calling features will likely be rejected.
Android Foreground Services: Apps can run foreground services that maintain connections, but must display a persistent notification to the user. This is appropriate for actively ongoing activities (music playback, navigation) but feels intrusive for chat apps. Users may disable or uninstall apps with unwanted persistent notifications.
Advantages: True real time message delivery even when backgrounded. Best possible user experience.
Disadvantages: Platform restrictions make this unavailable for most pure chat apps. Foreground service notifications annoy users. Increased battery consumption may lead users to uninstall.
Architectural implications: Only viable if your app genuinely provides VoIP or other qualifying functionality. Otherwise, design assuming connections terminate on background.
1.4.3 The Pragmatic Hybrid Architecture
Most successful chat apps use a hybrid approach:
Foreground: Maintain SSE connection for real time message streaming. Aggressive delivery with minimal latency.
Recently Backgrounded (first few minutes): The connection may persist briefly. Deliver messages normally until disconnect detected.
Backgrounded: Switch to push notification model. Buffer messages server side. Send push notification for new messages. Optionally use silent push to trigger background sync of recent messages.
App Terminated: Pure push notification relay. User sees notification, opens app, app reconnects and syncs all missed messages.
Return to Foreground: Immediately re-establish SSE connection. Sync any messages missed during background period using Last-Event-ID resume. Return to real time streaming.
This hybrid approach accepts platform constraints rather than fighting them. Real time delivery when possible, reliable notification when not.
1.4.4 Server Side Implications
The hybrid model requires server architecture to support:
Connection State Tracking: Detect when SSE connections close. Distinguish between network hiccup (will reconnect shortly) and true backgrounding (switch to push mode).
Per User Message Buffers: Store messages for offline users. Size buffers appropriately; users backgrounded for days may have thousands of messages.
Push Integration: Maintain connections to APNs and FCM. Handle token refresh, feedback service (invalid tokens), and retry logic.
Efficient Sync Protocol: Support “give me everything since message ID X” queries efficiently. Index appropriately for this access pattern.
Delivery Tracking: Track which messages were delivered via SSE versus require push notification versus awaiting sync on app open. Avoid duplicate notifications.
1.5 Message Ordering and Delivery Guarantees
Users expect messages to arrive in send order. When Alice sends “Are you free?” followed by “for dinner tonight?”, they must arrive in that order or the conversation becomes nonsensical. Network variability means packets arrive out of order constantly. Your application layer must reorder correctly.
Additionally, mobile chat requires “at least once” delivery with deduplication. Users expect messages to arrive even if they were offline when sent. But retransmission on reconnection must not create duplicates. This requires message identifiers, delivery tracking, and idempotent processing throughout your pipeline.
2. Why Apache Pekko Solves These Problems
Apache Pekko provides the distributed systems primitives that address mobile chat’s fundamental challenges. Understanding why requires examining what Pekko actually provides and how it maps to chat requirements.
2.1 The Licensing Context: Why Pekko Over Akka
Akka pioneered the actor model on the JVM and proved it at scale across thousands of production deployments. In 2022, Lightbend changed Akka’s licence from Apache 2.0 to the Business Source Licence, requiring commercial licences for production use above certain thresholds.
Apache Pekko emerged as a community fork maintaining API compatibility with Akka 2.6.x under Apache 2.0 licensing. For architects evaluating new projects, Pekko provides the same battle tested primitives without licensing concerns or vendor dependency.
The codebase is mature, inheriting over a decade of Akka’s production hardening. The community is active and includes many former Akka contributors. For new distributed systems projects on the JVM, Pekko is the clear choice.
2.2 The Actor Model: Right Abstraction for Connection State
The actor model treats computation as isolated entities exchanging messages. Each actor has private state, processes messages sequentially, and communicates only through asynchronous message passing. No shared memory, no locks, no synchronisation primitives.
This maps perfectly onto chat connections:
One Actor Per Connection: Each mobile connection becomes an actor. The actor holds connection state: user identity, device information, subscription preferences, message buffers. When messages arrive for that user, they route to the actor. When the connection terminates, the actor stops and releases resources.
Extreme Lightweightness: Actors are not threads. A single JVM hosts millions of actors, each consuming only a few hundred bytes when idle. This matches mobile’s reality: millions of mostly idle connections, each requiring instant activation when a message arrives.
Natural Fault Isolation: A misbehaving connection cannot crash the server. Actors fail independently. Supervisor hierarchies determine recovery strategy. One client sending malformed data affects only its actor, not the millions of other connections on that node.
Sequential Processing Eliminates Concurrency Bugs: Each actor processes one message at a time. Connection state updates are inherently serialised. You don’t need locks, atomic operations, or careful reasoning about race conditions. The actor model eliminates entire categories of bugs that plague traditional concurrent connection handling.

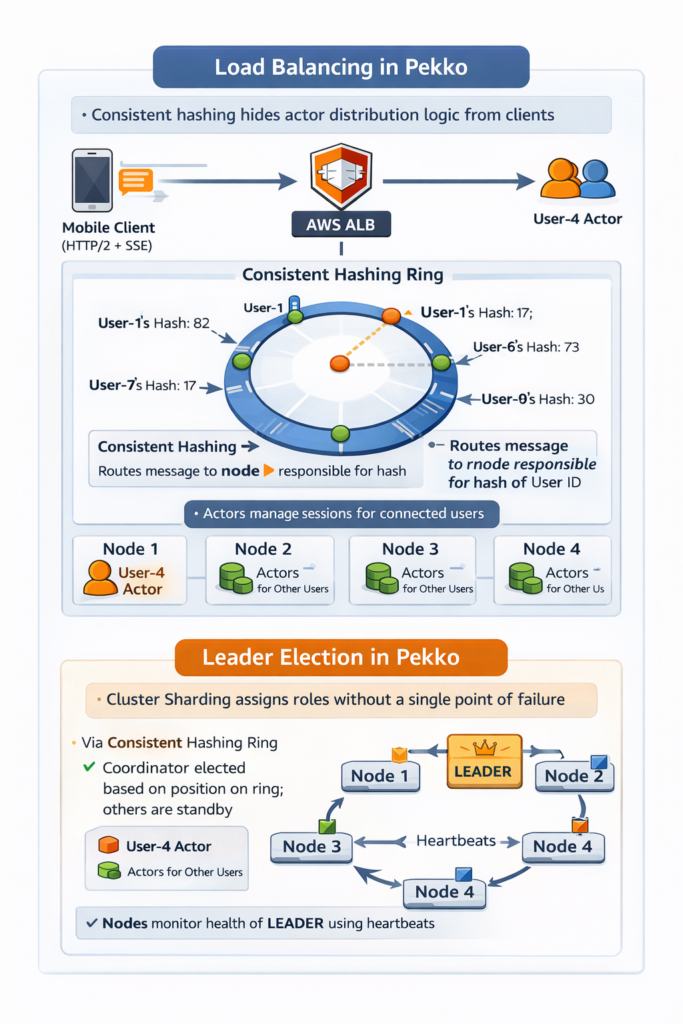

2.3 Cluster Sharding: Eliminating the Routing Bottleneck
Cluster sharding is Pekko’s solution to the connection routing problem. Rather than maintaining an explicit routing table, you define a sharding strategy based on entity identity. Pekko handles physical routing transparently.
When sending a message to User B, you address it to User B’s logical entity identifier. You don’t know or care which physical node hosts User B. Pekko’s sharding layer determines the correct node and routes the message. If User B isn’t currently active, the shard can activate an actor for them on demand.
The architectural significance is profound:
No Centralised Routing Table: There’s no Redis cluster to query for every message. Routing is computed from the entity identifier using consistent hashing. The computation is local; no network round trip required.
Automatic Rebalancing: When nodes join or leave the cluster, shards rebalance automatically. Application code is unchanged. A user might reconnect to a different physical node after a network transition, but message delivery continues because routing is by logical identity, not physical location.
Elastic Scaling: Add nodes to increase capacity. Remove nodes during low traffic. The sharding layer handles redistribution without application involvement. This is true elasticity, not the sticky session pseudo scaling that WebSocket architectures often require.
Location Transparency: Services sending messages don’t know cluster topology. They address logical entities. This decouples message producers from the physical deployment, enabling independent scaling of different cluster regions.
2.4 Backpressure: Graceful Degradation Under Load
Mobile networks have variable bandwidth. A user on fast WiFi can receive messages instantly. The same user in an elevator has effectively zero bandwidth. What happens to messages queued for delivery?
Without explicit backpressure, messages accumulate in memory. The buffer grows until the server exhausts heap and crashes. This cascading failure takes down not just one connection but thousands sharing that server.
Pekko Streams provides reactive backpressure propagating through entire pipelines. When a consumer can’t keep up, pressure signals flow backward to producers. You configure explicit overflow strategies:
Bounded Buffers: Limit how many messages queue per connection. Memory consumption is predictable regardless of consumer speed.
Overflow Strategies: When buffers fill, choose behaviour: drop oldest messages, drop newest messages, signal failure to producers. For chat, dropping oldest is usually correct; users prefer missing old messages to system crashes.
Graceful Degradation: Under extreme load, the system slows down rather than falling over. Message delivery delays but the system remains operational.
This explicit backpressure is essential for mobile where network quality varies wildly and client consumption rates are unpredictable.
2.5 Multi Device and Presence
Modern users have multiple devices: phone, tablet, watch, desktop. Messages should deliver to all connected devices. Presence should reflect aggregate state across devices.
The actor hierarchy models this naturally. A UserActor represents the user across all devices. Child ConnectionActors represent individual device connections. Messages to the user fan out to all active connections. When all devices disconnect, the UserActor knows the user is offline and can trigger push notifications or buffer messages.
This isn’t just convenience; it’s architectural clarity. The UserActor is the single source of truth for that user’s state. There’s no distributed coordination problem across devices because one actor owns the aggregate state.
3. Server Sent Events: The Right Protocol Choice
WebSockets are the default assumption for real time applications. Server Sent Events deserve serious architectural consideration for mobile chat.
3.1 Understanding Traffic Asymmetry
Examine any chat system’s traffic patterns. Users receive far more messages than they send. In a group chat with 50 participants, each sent message generates 49 deliveries. Downstream traffic (server to client) exceeds upstream by roughly two orders of magnitude.
WebSocket provides symmetric bidirectional streaming. You’re provisioning and managing upstream capacity you don’t need. SSE acknowledges the asymmetry: persistent streaming downstream, standard HTTP requests upstream.
This isn’t a limitation; it’s architectural honesty about traffic patterns.
3.2 Upstream Path Simplicity
With SSE, sending a message is an HTTP POST. This request is stateless. Any server in your cluster can handle it. Load balancing is trivial. Retries on network failure use standard HTTP retry logic. Rate limiting uses standard HTTP rate limiting. Authentication uses standard HTTP authentication.
You’ve eliminated an entire category of complexity. The upstream path doesn’t need sticky sessions, doesn’t need cluster coordination, doesn’t need special handling for connection migration. It’s just HTTP requests, which your infrastructure already knows how to handle.
3.3 Automatic Reconnection with Resume
The EventSource specification includes automatic reconnection with resume capability. When a connection drops, the client reconnects and sends the Last-Event-ID header indicating the last successfully received event. The server resumes from that point.
For mobile where disconnections happen constantly, this built in resume eliminates significant application complexity. You’re not implementing reconnection logic, not tracking client state for resume, not building replay mechanisms. The protocol handles it.
This is exactly once delivery semantics without distributed transaction protocols. The client tells you what it received; you replay from there.
3.4 HTTP Infrastructure Compatibility
SSE is pure HTTP. It works through every proxy, load balancer, CDN, and firewall that understands HTTP. Corporate networks, hotel WiFi, airplane WiFi: if HTTP works, SSE works.
WebSocket, despite widespread support, still encounters edge cases. Some corporate proxies don’t handle the upgrade handshake. Some firewalls block the WebSocket protocol. Some CDNs don’t support WebSocket passthrough. These edge cases occur precisely when users are on restrictive networks where reliability matters most.
From an operations perspective, SSE uses your existing HTTP monitoring, logging, and debugging infrastructure. WebSocket requires parallel tooling.
3.5 Debugging and Observability
SSE streams are plain text over HTTP. You can observe them with curl, log them with standard HTTP logging, replay them for debugging. Every HTTP tool in your operational arsenal works.
WebSocket debugging requires specialised tools understanding the frame protocol. At 3am during an incident, the simplicity of SSE becomes invaluable.
4. HTTP Protocol Version: A Critical Infrastructure Decision
The choice between HTTP/1.1, HTTP/2, and HTTP/3 significantly impacts mobile chat performance. Each version represents different tradeoffs.
4.1 HTTP/1.1: Universal Compatibility
HTTP/1.1 works everywhere. Every client, proxy, load balancer, and debugging tool supports it. For SSE specifically, HTTP/1.1 functions correctly because SSE connections are single stream.
The limitation is connection overhead. Browsers and mobile clients restrict HTTP/1.1 connections to six per domain. A chat app with multiple subscriptions (messages, presence, typing indicators, notifications) exhausts this quickly. Each subscription requires a separate TCP connection with separate TLS handshake overhead.
For mobile, the multiple connection problem compounds with battery impact. Each TCP connection requires radio activity for establishment and maintenance. Six connections consume significantly more power than one.
Choose HTTP/1.1 when: Maximum compatibility is essential, your infrastructure doesn’t support HTTP/2, or you have very few simultaneous streams.
4.2 HTTP/2: The Practical Choice for Most Deployments
HTTP/2 multiplexes unlimited streams over a single TCP connection. Each SSE subscription becomes a stream within the same connection. Browser connection limits become irrelevant.
For mobile architecture, the implications are substantial:
Single Connection Efficiency: One TCP connection, one TLS session, one set of kernel buffers. The radio wakes once rather than maintaining multiple connections. Battery consumption drops significantly.
Instant Stream Establishment: New subscriptions don’t require TCP handshakes. Opening a new chat room adds a stream to the existing connection in milliseconds rather than the hundreds of milliseconds for new TCP connection establishment.
Header Compression: HPACK compression eliminates redundant bytes in repetitive headers. SSE requests with identical Authorization, Accept, and User-Agent headers compress to single digit bytes after the first request.
Stream Isolation: Flow control operates per stream. A slow stream doesn’t block other streams. If a busy group chat falls behind, direct message delivery continues unaffected.
The limitation is TCP head of line blocking. HTTP/2 streams are independent at the application layer but share a single TCP connection underneath. A single lost packet blocks all streams until retransmission. On lossy mobile networks, this creates correlated latency spikes across all subscriptions.
Choose HTTP/2 when: You need multiplexing benefits, your infrastructure supports HTTP/2 termination, and TCP head of line blocking is acceptable.
4.3 HTTP/3 and QUIC: Purpose Built for Mobile
HTTP/3 replaces TCP with QUIC, a UDP based transport with integrated encryption. For mobile chat, QUIC provides capabilities that fundamentally change user experience.
Stream Independence: QUIC delivers streams independently at the transport layer, not just the application layer. Packet loss on one stream doesn’t affect others. On mobile networks where packet loss is routine, this isolation prevents correlated latency spikes across chat subscriptions.
Connection Migration: QUIC connections are identified by connection ID, not IP address and port. When a device switches from WiFi to cellular, the QUIC connection survives the IP address change. No reconnection, no TLS renegotiation, no message replay. The connection continues seamlessly.
This is transformative for mobile. A user walking from WiFi coverage to cellular maintains their chat connection without interruption. With TCP, this transition requires full reconnection with associated latency and potential message loss during the gap.
Zero Round Trip Resumption: For returning connections, QUIC supports 0-RTT establishment. A user who chatted yesterday can send and receive messages before completing the handshake. For apps where users connect and disconnect frequently, this eliminates perceptible connection latency.
Current Deployment Challenges: Some corporate firewalls block UDP. QUIC runs in userspace rather than leveraging kernel TCP optimisations, increasing CPU overhead. Operational tooling is less mature. Load balancer support varies across vendors.
Choose HTTP/3 when: Mobile experience is paramount, your infrastructure supports QUIC termination, and you can fall back gracefully when UDP is blocked.
4.4 The Hybrid Architecture Recommendation
Deploy HTTP/2 as your baseline with HTTP/3 alongside. Clients negotiate using Alt-Svc headers, selecting HTTP/3 when available and falling back to HTTP/2 when UDP is blocked.
Modern iOS (15+) and Android clients support HTTP/3 natively. Most mobile users will negotiate HTTP/3 automatically, getting connection migration benefits. Users on restrictive networks fall back to HTTP/2 without application awareness.
This hybrid approach provides optimal experience for capable clients while maintaining universal accessibility.
5. Java 25: Runtime Capabilities That Change Architecture
Java 25 delivers runtime capabilities that fundamentally change how you architect JVM based chat systems. These aren’t incremental improvements but architectural enablers.
5.1 Virtual Threads: Eliminating the Thread/Connection Tension
Traditional Java threads map one to one with operating system threads. Each thread allocates megabytes of stack space and involves kernel scheduling. At 10,000 threads, context switching overhead dominates CPU usage. At 100,000 threads, the system becomes unresponsive.
This created a fundamental architectural tension. Simple, readable code wants one thread per connection, processing messages sequentially with straightforward blocking I/O. But you can’t afford millions of OS threads for millions of connections. The solution was reactive programming: callback chains, continuation passing, complex async/await patterns that are difficult to write, debug, and maintain.
Virtual threads resolve this tension. They’re lightweight threads managed by the JVM, not the operating system. Millions of virtual threads multiplex onto a small pool of platform threads (typically matching CPU core count). When a virtual thread blocks on I/O, it yields its carrier platform thread to other virtual threads rather than blocking the OS thread.
Architecturally, you can now write straightforward sequential code for connection handling. Read from network. Process message. Write to database. Query cache. Each operation can block without concern. When I/O blocks, other connections proceed on the same platform threads.
Combined with Pekko’s actor model, virtual threads enable blocking operations inside actors without special handling. Actors calling databases or external services can use simple blocking calls rather than complex async patterns.
5.2 Generational ZGC: Eliminating GC as an Architectural Constraint
Garbage collection historically constrained chat architecture. Under sustained load, heap fills with connection state, message buffers, and temporary objects. Eventually, major collection triggers, pausing all application threads for hundreds of milliseconds.
During that pause, no messages deliver. Connections timeout. Clients reconnect. The reconnection surge creates more garbage, triggering more collection, potentially cascading into cluster wide instability.
Architects responded with complex mitigations: off heap storage, object pooling, careful allocation patterns, GC tuning rituals. Or they abandoned the JVM entirely for languages with different memory models.
Generational ZGC in Java 25 provides sub millisecond pause times regardless of heap size. At 100GB heap with millions of objects, GC pauses remain under 1ms. Collection happens concurrently while application threads continue executing.
Architecturally, this removes GC as a constraint. You can use straightforward object allocation patterns. You can provision large heaps for connection state. You don’t need off heap complexity for latency sensitive paths. GC induced latency spikes don’t trigger reconnection cascades.

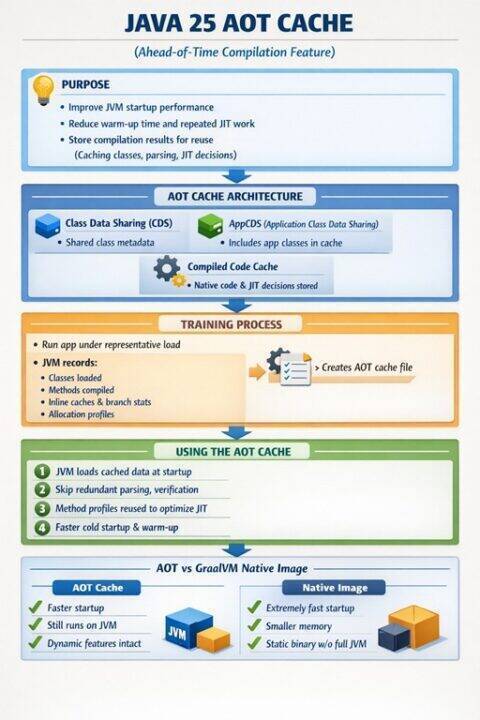

5.3 AOT Compilation Cache: Solving the Warmup Problem
Java’s Just In Time compiler produces extraordinarily efficient code after warmup. The JVM interprets bytecode initially, identifies hot paths through profiling, compiles them to native code, then recompiles with more aggressive optimisation as profile data accumulates.
Full optimisation takes 3 to 5 minutes of sustained load. During warmup:
Elevated Latency: Interpreted code runs 10x to 100x slower than compiled code. Message delivery takes milliseconds instead of microseconds.
Increased CPU Usage: The JIT compiler consumes significant CPU while compiling. Less capacity remains for actual work.
Impaired Autoscaling: When load spikes trigger scaling, new instances need warmup before reaching efficiency. The spike might resolve before new capacity becomes useful.
Deployment Pain: Rolling deployments put cold instances into rotation. Users hitting new instances experience degraded performance until warmup completes.
AOT (Ahead of Time) compilation caching through Project Leyden addresses this. You perform a training run under representative load. The JVM records compilation decisions: which methods are hot, inlining choices, optimisation levels. This persists to a cache file.
On production startup, the JVM loads cached compilation decisions and applies them immediately. Methods identified as hot during training compile before handling any requests. The server starts at near optimal performance.
Architecturally, this transforms deployment and scaling characteristics. New instances become immediately productive. Autoscaling responds effectively to sudden load. Rolling deployments don’t cause latency regressions. You can be more aggressive with instance replacement for security patching or configuration changes.
5.4 Structured Concurrency: Lifecycle Clarity
Structured concurrency ensures concurrent operations have clear parent/child relationships. When a parent scope completes, child operations are guaranteed complete or cancelled. No orphaned tasks, no resource leaks from forgotten futures.
For chat connection lifecycle, this provides architectural clarity. When a connection closes, all associated operations terminate: pending message deliveries, presence updates, typing broadcasts. With unstructured concurrency, ensuring complete cleanup requires careful tracking. With structured concurrency, cleanup is automatic and guaranteed.
Combined with virtual threads, you might spawn thousands of lightweight threads for subtasks within a connection’s processing. Structured concurrency ensures they all terminate appropriately when the connection ends.
6. Kubernetes and EKS Deployment Architecture
Deploying Pekko clusters on Kubernetes requires understanding how actor clustering interacts with container orchestration.
6.1 EKS Configuration Considerations
Amazon EKS provides managed Kubernetes suitable for Pekko chat deployments. Several configuration choices significantly impact cluster behaviour.
Node Instance Types: Chat servers are memory bound before CPU bound due to connection state overhead. Memory optimised instances (r6i, r6g series) provide better cost efficiency than general purpose instances. For maximum connection density, r6g.4xlarge (128GB memory, 16 vCPU) or r6i.4xlarge handles approximately 500,000 connections per node.
Graviton Instances: ARM based Graviton instances (r6g, r7g series) provide approximately 20% better price performance than equivalent x86 instances. Java 25 has mature ARM support. Unless you have x86 specific dependencies, Graviton instances reduce infrastructure cost at scale.
Node Groups: Separate node groups for Pekko cluster nodes versus supporting services (databases, monitoring, ingestion). This allows independent scaling and prevents noisy neighbour issues where supporting workloads affect chat latency.
Pod Anti-Affinity: Configure pod anti-affinity to spread Pekko cluster members across availability zones and physical hosts. Losing a single host shouldn’t remove multiple cluster members simultaneously.
6.2 Pekko Kubernetes Discovery
Pekko clusters require members to discover each other for gossip protocol coordination. On Kubernetes, the Pekko Kubernetes Discovery module uses the Kubernetes API to find peer pods.
Configuration involves:
Headless Service: A Kubernetes headless service (clusterIP: None) allows pods to discover peer pod IPs directly rather than load balancing.
RBAC Permissions: The Pekko discovery module needs permissions to query the Kubernetes API for pod information. A ServiceAccount with appropriate RBAC rules enables this.
Startup Coordination: During rolling deployments, new pods must join the existing cluster before old pods terminate. Proper readiness probes and deployment strategies ensure cluster continuity.
6.3 Network Configuration for Connection Density
High connection counts require careful network configuration:
VPC CNI Settings: The default AWS VPC CNI limits pods per node based on ENI capacity. For high connection density, configure secondary IP mode or consider Calico CNI for higher pod density.
Connection Tracking: Linux connection tracking tables have default limits around 65,536 entries. At hundreds of thousands of connections per node, increase nf_conntrack_max accordingly.
Port Exhaustion: With HTTP/2 multiplexing, port exhaustion is less common but still possible for outbound connections to databases and services. Ensure adequate ephemeral port ranges.
6.4 Horizontal Pod Autoscaling Considerations
Traditional HPA based on CPU or memory doesn’t map well to chat workloads where connection count is the primary scaling dimension.
Custom Metrics: Expose connection count as a Prometheus metric and configure HPA using custom metrics adapter. Scale based on connections per pod rather than resource utilisation.
Predictive Scaling: Chat traffic often has predictable daily patterns. AWS Predictive Scaling can pre provision capacity before expected peaks rather than reacting after load arrives.
Scaling Responsiveness: With AOT compilation cache, new pods are immediately productive. This enables more aggressive scaling policies since new capacity provides value immediately rather than after warmup.
6.5 Service Mesh Considerations
Service mesh technologies (Istio, Linkerd) add sidecar proxies that intercept traffic. For high connection count workloads, evaluate carefully:
Sidecar Overhead: Each connection passes through the sidecar proxy, adding latency and memory overhead. At 500,000 connections per pod, sidecar memory consumption becomes significant.
mTLS Termination: If using service mesh for internal mTLS, the sidecar terminates and re-establishes TLS, adding CPU overhead per connection.
Recommendation: For Pekko cluster internal traffic, consider excluding from mesh using annotations. Apply mesh policies to edge traffic where the connection count is lower.
7. Linux Distribution Selection
The choice of Linux distribution affects performance, security posture, and operational characteristics for high connection count workloads.
7.1 Amazon Linux 2023
Amazon Linux 2023 (AL2023) is purpose built for AWS workloads. It uses a Fedora based lineage with Amazon specific optimisations.
Advantages: Optimised for AWS infrastructure including Nitro hypervisor integration. Regular security updates through Amazon. No licensing costs. Excellent AWS tooling integration. Kernel tuned for network performance.
Considerations: Shorter support lifecycle than enterprise distributions. Community smaller than Ubuntu or RHEL ecosystems.
Best for: EKS deployments prioritising AWS integration and cost optimisation.
7.2 Bottlerocket
Bottlerocket is Amazon’s container optimised Linux distribution. It runs containers and nothing else.
Advantages: Minimal attack surface with only container runtime components. Immutable root filesystem prevents runtime modification. Atomic updates reduce configuration drift. API driven configuration rather than SSH access.
Considerations: Cannot run non-containerised workloads. Debugging requires different operational patterns (exec into containers rather than SSH to host). Less community familiarity.
Best for: High security environments where minimal attack surface is paramount. Organisations with mature container debugging practices.
7.3 Ubuntu Server
Ubuntu Server (22.04 LTS or 24.04 LTS) provides broad compatibility and extensive community support.
Advantages: Large community and extensive documentation. Wide hardware and software compatibility. Canonical provides commercial support options. Most operational teams are familiar with Ubuntu.
Considerations: Larger base image than container optimised distributions. More components installed than strictly necessary for container hosts.
Best for: Teams prioritising operational familiarity and broad ecosystem compatibility.
7.4 Flatcar Container Linux
Flatcar is a community maintained fork of CoreOS Container Linux, designed specifically for container workloads.
Advantages: Minimal OS footprint focused on container hosting. Automatic atomic updates. Immutable infrastructure patterns built in. Active community continuing CoreOS legacy.
Considerations: Smaller community than major distributions. Fewer enterprise support options.
Best for: Organisations comfortable with immutable infrastructure patterns seeking minimal container optimised OS.
7.5 Recommendation
For most EKS chat deployments, Amazon Linux 2023 provides the best balance of AWS integration, performance, and operational familiarity. The kernel network stack tuning is appropriate for high connection counts, AWS tooling integration is seamless, and operational teams can apply existing Linux knowledge.
For high security environments or organisations committed to immutable infrastructure, Bottlerocket provides stronger security posture at the cost of operational model changes.
8. Comparing Alternative Architectures
8.1 WebSockets with Socket.IO
Socket.IO provides WebSocket with automatic fallback and higher level abstractions like rooms and acknowledgements.
Architectural Advantages: Rich feature set reduces development time. Room abstraction maps naturally to group chats. Acknowledgement system provides delivery confirmation. Large community provides extensive documentation and examples.
Architectural Disadvantages: Sticky sessions required for scaling. The load balancer must route all requests from a client to the same server, fighting against elastic scaling. Scaling beyond a single server requires a pub/sub adapter (typically Redis), introducing a centralised bottleneck. The proprietary protocol layer over WebSocket adds complexity and overhead.
Scale Ceiling: Practical limits around hundreds of thousands of connections before the Redis adapter becomes a bottleneck.
Best For: Moderate scale applications where development speed outweighs architectural flexibility.
8.2 Firebase Realtime Database / Firestore
Firebase provides real time synchronisation as a fully managed service with excellent mobile SDKs.
Architectural Advantages: Zero infrastructure to operate. Offline support built into mobile SDKs. Real time listeners are trivial to implement. Automatic scaling handled by Google. Cross platform consistency through Google’s SDKs.
Architectural Disadvantages: Complete vendor lock in to Google Cloud Platform. Pricing scales with reads, writes, and bandwidth, becoming expensive at scale. Limited query capabilities compared to purpose built databases. Security rules become complex as data models grow. No control over performance characteristics or geographic distribution.
Scale Ceiling: Technically unlimited, but cost prohibitive beyond moderate scale.
Best For: Startups and applications where chat is a feature, not the product. When operational simplicity justifies premium pricing.
8.3 gRPC Streaming
gRPC provides efficient bidirectional streaming with Protocol Buffer serialisation.
Architectural Advantages: Highly efficient binary serialisation reduces bandwidth. Strong typing through Protocol Buffers catches errors at compile time. Excellent for polyglot service meshes. Deadline propagation and cancellation built into the protocol.
Architectural Disadvantages: Limited browser support requiring gRPC-Web proxy translation. Protocol Buffers add schema management overhead. Mobile client support requires additional dependencies. Debugging is more complex than HTTP based protocols.
Scale Ceiling: Very high; gRPC is designed for Google scale internal communication.
Best For: Backend service to service communication. Mobile clients through a translation gateway.
8.4 Solace PubSub+
Solace provides enterprise messaging infrastructure with support for multiple protocols including MQTT, AMQP, REST, and WebSocket. It’s positioned as enterprise grade messaging for mission critical applications.
Architectural Advantages:
Multi-protocol support allows different clients to use optimal protocols. Mobile clients might use MQTT for battery efficiency while backend services use AMQP for reliability guarantees. Protocol translation happens at the broker level without application involvement.
Hardware appliance options provide deterministic latency for organisations requiring guaranteed performance characteristics. Software brokers run on commodity infrastructure for cloud deployments.
Built in message replay and persistence provides durable messaging without separate storage infrastructure. Messages survive broker restarts and can be replayed for late joining subscribers.
Enterprise features like fine grained access control, message filtering, and topic hierarchies are mature and well documented. Compliance and audit capabilities suit regulated industries.
Hybrid deployment models support on premises, cloud, and edge deployments with consistent APIs. Useful for organisations with complex deployment requirements spanning multiple environments.
Architectural Disadvantages:
Proprietary technology creates vendor dependency. While Solace supports standard protocols, the management plane and advanced features are Solace specific. Migration to alternatives requires significant effort.
Cost structure includes licensing fees that become substantial at scale. Unlike open source alternatives, you pay for the messaging infrastructure beyond just compute and storage.
Operational model differs from cloud native patterns. Solace brokers are stateful infrastructure requiring specific operational expertise. Teams familiar with Kubernetes native patterns face a learning curve.
Connection model is broker centric rather than service mesh style. All messages flow through Solace brokers, which become critical infrastructure requiring high availability configuration.
Less ecosystem integration than cloud provider native services. While Solace runs on AWS, Azure, and GCP, it doesn’t integrate as deeply as native services like Amazon MQ or Google Pub/Sub.
Scale Ceiling: Very high with appropriate hardware or cluster configuration. Solace publishes benchmarks showing millions of messages per second.
Best For: Enterprises with existing Solace investments. Organisations requiring multi-protocol support. Regulated industries needing enterprise support contracts and compliance certifications. Hybrid deployments spanning on premises and cloud.
Comparison to Pekko + SSE:
Solace is a messaging infrastructure product; Pekko + SSE is an application architecture pattern. Solace provides the transport layer with sophisticated routing, persistence, and protocol support. Pekko + SSE builds the application logic with actors, clustering, and HTTP streaming.
For greenfield mobile chat, Pekko + SSE provides more control, lower cost, and better fit for modern cloud native deployment. For enterprises integrating chat into existing Solace infrastructure or requiring Solace’s specific capabilities (multi-protocol, hardware acceleration, compliance), Solace as the transport layer with application logic on top is viable.
The architectures can also combine: use Solace for backend service communication and durable message storage while using Pekko + SSE for client-facing connection handling. This hybrid leverages Solace’s enterprise messaging strengths while maintaining cloud native patterns at the edge.
8.5 Commercial Platforms: Pusher, Ably, PubNub
Managed real time platforms provide complete infrastructure as a service.
Architectural Advantages: Zero infrastructure to build or operate. Global edge presence included. Guaranteed SLAs with financial backing. Features like presence and message history built in.
Architectural Disadvantages: Significant cost at scale, often exceeding $10,000 monthly at millions of connections. Vendor lock in with proprietary APIs. Limited customisation for specific requirements. Latency to vendor infrastructure adds milliseconds to every message.
Scale Ceiling: High, but cost limited rather than technology limited.
Best For: When real time is a feature you need but not core competency. When engineering time is more constrained than infrastructure budget.
8.6 Erlang/Elixir with Phoenix Channels
The BEAM VM provides battle tested concurrency primitives, and Phoenix Channels offer WebSocket abstraction with presence and pub/sub.
Architectural Advantages: Exceptional concurrency model designed and proven at telecom scale. “Let it crash” supervision provides natural fault tolerance. WhatsApp scaled to billions of messages on BEAM. Per process garbage collection eliminates global GC pauses. Hot code reloading enables deployment without disconnecting users.
Architectural Disadvantages: Smaller talent pool than JVM ecosystem. Different operational model requires team investment. Library ecosystem is smaller than Java. Integration with existing JVM based systems requires interop complexity.
Scale Ceiling: Very high; BEAM is purpose built for this workload.
Best For: Teams with Erlang/Elixir expertise. Greenfield applications where the BEAM’s unique capabilities (hot reloading, per process GC) provide significant value.
8.7 Comparison Summary
Architecture
Scale Ceiling
Operational Complexity
Development Speed
Cost at Scale
Talent Availability
Pekko + SSE
Very High
Medium
Medium
Low
High
Socket.IO
Medium
Medium
Fast
Medium
Very High
Firebase
High
Very Low
Very Fast
Very High
High
gRPC
Very High
Medium
Medium
Low
High
Solace
Very High
Medium-High
Medium
High
Medium
Commercial
High
Very Low
Fast
Very High
N/A
BEAM/Phoenix
Very High
Medium
Medium
Low
Low
9. Capacity Planning Framework
9.1 Connection Density Expectations
With Java 25 on appropriately sized instances, expect approximately 500,000 to 750,000 concurrent SSE connections per node. Limiting factors in order of typical impact:
Memory: Each connection requires actor state, stream buffers, and HTTP/2 overhead. Budget 100 to 200 bytes per idle connection, 1KB to 2KB per active connection with buffers.
File Descriptors: Each TCP connection requires a kernel file descriptor. Default Linux limits (1024) are inadequate. Production systems need limits of 500,000 or higher.
Network Bandwidth: Aggregate message throughput eventually saturates network interfaces, typically 10Gbps on modern cloud instances.
9.2 Throughput Expectations
Message throughput depends on message size and processing complexity:
Simple Relay: 50,000 to 100,000 messages per second per node for small messages with minimal processing.
With Persistence: 20,000 to 50,000 messages per second when writing to database.
With Complex Processing: 10,000 to 30,000 messages per second with encryption, filtering, or transformation logic.
9.3 Latency Targets
Reasonable expectations for properly architected systems:
Same Region Delivery: p50 under 10ms, p99 under 50ms.
Cross Region Delivery: p50 under 100ms, p99 under 200ms (dominated by network latency).
Connection Establishment: Under 500ms including TLS handshake.
Reconnection with Resume: Under 200ms with HTTP/3, under 500ms with HTTP/2.
9.4 Cluster Sizing Example
For 10 million concurrent connections with 1 million active users generating 10,000 messages per second:
Connection Tier: 15 to 20 Pekko nodes (r6g.4xlarge) handling connection state and message routing.
Persistence Tier: 3 to 5 node ScyllaDB or Cassandra cluster for message storage.
Cache Tier: 3 node Redis cluster for presence and transient state if not using Pekko distributed data.
Load Balancing: Application Load Balancer with HTTP/2 support, or Network Load Balancer with Nginx fleet for HTTP/3.
10. Architectural Principles
Several principles guide successful mobile chat architecture regardless of specific technology choices.
10.1 Design for Reconnection
Mobile connections are ephemeral. Every component should assume disconnection happens constantly. Message delivery must survive connection loss. State reconstruction must be fast. Resume must be seamless.
This isn’t defensive programming; it’s accurate modelling of mobile reality.
10.2 Separate Logical Identity from Physical Location
Messages should route to User B, not to “the server holding User B’s connection.” When User B reconnects to a different server, routing should work without explicit updates.
Cluster sharding provides this naturally. Explicit routing tables require careful consistency management that’s difficult to get right.
10.3 Embrace Traffic Asymmetry
Chat is read heavy. Optimise the downstream path aggressively. The upstream path handles lower volume and can be simpler.
SSE plus HTTP POST matches this asymmetry. Bidirectional WebSocket overprovisions upload capacity.
10.4 Make Backpressure Explicit
When consumers can’t keep up, something must give. Explicit backpressure with configurable overflow strategies is better than implicit unbounded buffering that eventually exhausts memory.
Decide what happens when a client falls behind. Drop oldest messages? Drop newest? Disconnect? Make it a conscious architectural choice.
10.5 Eliminate Warmup Dependencies
Mobile load is spiky. Autoscaling must respond quickly. New instances must be immediately productive.
AOT compilation cache, pre warmed connection pools, and eager initialisation eliminate the warmup period that makes autoscaling ineffective.
10.6 Plan for Multi Region
Mobile users are globally distributed. Latency matters for chat quality. Eventually you’ll need presence in multiple regions.
Architecture decisions made for single region deployment affect multi region feasibility. Avoid patterns that assume single cluster or centralised state.
10.7 Accept Platform Constraints for Background Operation
Fighting mobile platform restrictions on background execution is futile. Design for the hybrid model: real time when foregrounded, push notification relay when backgrounded, efficient sync on return.
Architectures that assume persistent connections regardless of app state will disappoint users with battery drain or fail entirely when platforms enforce restrictions.
11. Conclusion
Mobile chat at scale requires architectural decisions that embrace mobile reality: unstable networks, battery constraints, background execution limits, multi device users, and constant connection churn.
Apache Pekko provides the actor model and cluster sharding that naturally fit connection state and message routing. Actors handle millions of mostly idle connections efficiently. Cluster sharding solves routing without centralised bottlenecks.
Server Sent Events match chat’s asymmetric traffic pattern while providing automatic reconnection and resume. HTTP/2 multiplexing reduces connection overhead. HTTP/3 with QUIC enables connection migration for seamless network transitions.
Java 25 removes historical JVM limitations. Virtual threads eliminate the thread per connection tension. Generational ZGC removes GC as a latency concern. AOT compilation caching makes autoscaling effective by eliminating warmup.
The background execution model requires accepting platform constraints rather than fighting them. Real time streaming when foregrounded, push notification relay when backgrounded, efficient sync on return. This hybrid approach works within mobile platform rules while providing the best achievable user experience.
EKS deployment requires attention to instance sizing, network configuration, and Pekko cluster discovery integration. Amazon Linux 2023 provides the appropriate base for high connection count workloads.
Alternative approaches like Solace provide enterprise messaging capabilities but with different operational models and cost structures. The choice depends on existing infrastructure, compliance requirements, and team expertise.
The architecture handles tens of millions of concurrent connections. More importantly, it handles mobile gracefully: network transitions don’t lose messages, battery impact remains reasonable, and users experience the instant message delivery they expect whether the app is foregrounded or backgrounded.
The key architectural insight is that mobile chat is a distributed systems problem with mobile specific constraints layered on top. Solve the distributed systems challenges with proven primitives, address mobile constraints with appropriate protocol choices, and leverage modern runtime capabilities. The result is a system that scales horizontally, recovers automatically, and provides the experience mobile users demand.
Java 25 introduces a significant enhancement to application startup performance through the AOT (Ahead of Time) cache feature, part of JEP 483. This capability allows the JVM to cache the results of class loading, bytecode parsing, verification, and method compilation, dramatically reducing startup times for subsequent application runs. For enterprise applications, particularly those built with frameworks like Spring, this represents a fundamental shift in how we approach deployment and scaling strategies.
2. Understanding Ahead of Time Compilation
2.1 What is AOT Compilation?
Ahead of Time compilation differs from traditional Just in Time (JIT) compilation in a fundamental way: the compilation work happens before the application runs, rather than during runtime. In the standard JVM model, bytecode is interpreted initially, and the JIT compiler identifies hot paths to compile into native machine code. This process consumes CPU cycles and memory during application startup and warmup.
AOT compilation moves this work earlier in the lifecycle. The JVM can analyze class files, perform verification, parse bytecode structures, and even compile frequently executed methods to native code ahead of time. The results are stored in a cache that subsequent JVM instances can load directly, bypassing the expensive initialization phase.
2.2 The AOT Cache Architecture
The Java 25 AOT cache operates at multiple levels:
Class Data Sharing (CDS): The foundation layer that shares common class metadata across JVM instances. CDS has existed since Java 5 but has been significantly enhanced.
Application Class Data Sharing (AppCDS): Extends CDS to include application classes, not just JDK classes. This reduces class loading overhead for your specific application code.
Dynamic CDS Archives: Automatically generates CDS archives based on the classes loaded during a training run. This is the key enabler for the AOT cache feature.
Compiled Code Cache: Stores native code generated by the JIT compiler during training runs, allowing subsequent instances to load pre-compiled methods directly.
The cache is stored as a memory mapped file that the JVM can load efficiently at startup. The file format is optimized for fast access and includes metadata about the Java version, configuration, and class file checksums to ensure compatibility.
2.3 The Training Process
Training is the process of running your application under representative load to identify which classes to load, which methods to compile, and what optimization decisions to make. During training, the JVM records:
All classes loaded and their initialization order
Method compilation decisions and optimization levels
Inline caching data structures
Class hierarchy analysis results
Branch prediction statistics
Allocation profiles
The training run produces an AOT cache file that captures this runtime behavior. Subsequent JVM instances can then load this cache and immediately benefit from the pre-computed optimization decisions.
3. GraalVM Native Image vs Java 25 AOT Cache
3.1 Architectural Differences
GraalVM Native Image and Java 25 AOT cache solve similar problems but use fundamentally different approaches.
GraalVM Native Image performs closed world analysis at build time. It analyzes your entire application and all dependencies, determines which code paths are reachable, and compiles everything into a single native executable. The result is a standalone binary that:
Starts in milliseconds (typically 10-50ms)
Uses minimal memory (often 10-50MB at startup)
Contains no JVM or bytecode interpreter
Cannot load classes dynamically without explicit configuration
Requires build time configuration for reflection, JNI, and resources
Java 25 AOT Cache operates within the standard JVM runtime. It accelerates the JVM startup process but maintains full Java semantics:
Starts faster than standard JVM (typically 2-5x improvement)
Retains full dynamic capabilities (reflection, dynamic proxies, etc.)
Works with existing applications without code changes
Supports dynamic class loading
Falls back to standard JIT compilation for uncached methods
3.2 Performance Comparison
For a typical Spring Boot application (approximately 200 classes, moderate dependency graph):
Standard JVM: 8-12 seconds to first request Java 25 AOT Cache: 2-4 seconds to first request GraalVM Native Image: 50-200ms to first request
Real world measurements from a medium complexity Spring Boot application (e-commerce platform with 200+ beans):
Cold Start (no AOT cache):
Application startup time: 11.3s
Memory at startup: 285MB RSS
Time to first request: 12.1s
Peak memory during warmup: 420MB
With AOT Cache (trained):
Application startup time: 2.8s (75% improvement)
Memory at startup: 245MB RSS (14% improvement)
Time to first request: 3.2s (74% improvement)
Peak memory during warmup: 380MB (10% improvement)
Savings Breakdown:
Eliminated 8.5s of initialization overhead
Saved 40MB of temporary objects during startup
Reduced GC pressure during warmup by ~35%
First meaningful response 8.9s faster
For a 10 instance deployment, this translates to:
85 seconds less total startup time per rolling deployment
Faster autoscaling response (new pods ready in 3s vs 12s)
Reduced CPU consumption during startup phase by ~60%
5.4 Spring Boot Actuator Integration
Monitor AOT cache effectiveness via custom metrics:
@Component
public class AotCacheMetrics {
private final MeterRegistry registry;
public AotCacheMetrics(MeterRegistry registry) {
this.registry = registry;
exposeAotMetrics();
}
private void exposeAotMetrics() {
Gauge.builder("aot.cache.enabled", this::isAotCacheEnabled)
.description("Whether AOT cache is enabled and loaded")
.register(registry);
Gauge.builder("aot.cache.hit.ratio", this::getCacheHitRatio)
.description("Percentage of methods loaded from cache")
.register(registry);
}
private double isAotCacheEnabled() {
String aotCache = System.getProperty("XX:AOTCache");
String aotMode = System.getProperty("XX:AOTMode");
return (aotCache != null && "load".equals(aotMode)) ? 1.0 : 0.0;
}
private double getCacheHitRatio() {
// Access JVM internals via JMX or internal APIs
// This is illustrative - actual implementation depends on JVM exposure
return 0.85; // Placeholder
}
}
6. Caveats and Limitations
6.1 Cache Invalidation Challenges
The AOT cache contains compiled code and metadata that depends on:
Class file checksums: If any class file changes, the corresponding cache entries are invalid. Even minor code changes invalidate cached compilation results.
JVM version: Cache files are not portable across Java versions. A cache generated with Java 25.0.1 cannot be used with 25.0.2 if internal JVM structures changed.
JVM configuration: Heap sizes, GC algorithms, and other flags affect compilation decisions. The cache must match the production configuration.
Dependency versions: Changes to any dependency class files invalidate portions of the cache, potentially requiring full regeneration.
This means:
Every application version needs a new AOT cache
Caches should be generated in CI/CD, not manually
Cache generation must match production JVM flags exactly
6.2 Training Data Quality
The AOT cache is only as good as the training workload. Poor training leads to:
Incomplete coverage: Methods not executed during training remain uncached. First execution still pays JIT compilation cost.
Suboptimal optimizations: If training load doesn’t match production patterns, the compiler may make wrong inlining or optimization decisions.
Biased compilation: Over-representing rare code paths in training can waste cache space and lead to suboptimal production performance.
Best practices for training:
Execute all critical business operations
Include authentication and authorization paths
Trigger database queries and external API calls
Exercise error handling paths
Match production request distribution as closely as possible
6.3 Memory Overhead
The AOT cache file is memory mapped and consumes address space:
Small applications: 20-50MB cache file Medium applications: 50-150MB cache file Large applications: 150-400MB cache file
This is additional overhead beyond normal heap requirements. For memory constrained environments, the tradeoff may not be worthwhile. Calculate whether startup time savings justify the persistent memory consumption.
6.4 Build Time Implications
Generating AOT caches adds time to the build process:
Typical overhead: 60-180 seconds per build Components:
Application startup for training: 20-60s
Training workload execution: 30-90s
Cache serialization: 10-30s
For large monoliths, this can extend to 5-10 minutes. In CI/CD pipelines with frequent builds, this overhead accumulates. Consider:
Generating caches only for release builds
Caching AOT cache files between similar builds
Parallel cache generation for microservices
6.5 Debugging Complications
Pre-compiled code complicates debugging:
Stack traces: May reference optimized code that doesn’t match source line numbers exactly Breakpoints: Can be unreliable in heavily optimized cached methods Variable inspection: Compiler optimizations may eliminate intermediate variables
For development, disable AOT caching:
# Development environment
java -XX:AOTMode=off -jar myapp.jar
# Or simply omit the AOT flags entirely
java -jar myapp.jar
6.6 Dynamic Class Loading
Applications that generate classes at runtime face challenges:
Dynamic proxies: Generated proxy classes cannot be pre-cached Bytecode generation: Libraries like ASM that generate code at runtime bypass the cache Plugin architectures: Dynamically loaded plugins don’t benefit from main application cache
While the AOT cache handles core application classes well, highly dynamic frameworks may see reduced benefits. Spring’s use of CGLIB proxies and dynamic features means some runtime generation is unavoidable.
6.7 Profile Guided Optimization Drift
Over time, production workload patterns may diverge from training workload:
New features: Added endpoints not in training data Changed patterns: User behavior shifts rendering training data obsolete Seasonal variations: Holiday traffic patterns differ from normal training scenarios
Mitigation strategies:
Regenerate caches with each deployment
Update training workloads based on production telemetry
Monitor cache hit rates and retrain if they degrade
Consider multiple training scenarios for different deployment contexts
1. Load spike detected at t=0
2. HPA triggers scale out at t=10s
3. New pod scheduled at t=15s
4. Container starts at t=20s
5. JVM starts, application initializes at t=32s
6. Pod marked ready, receives traffic at t=35s
Total response time: 35 seconds
With AOT cache:
1. Load spike detected at t=0
2. HPA triggers scale out at t=10s
3. New pod scheduled at t=15s
4. Container starts at t=20s
5. JVM starts with cached data at t=23s
6. Pod marked ready, receives traffic at t=25s
Total response time: 25 seconds (29% improvement)
The 10 second improvement means the system can handle load spikes more effectively before performance degrades.
7.2 Readiness Probe Configuration
Optimize readiness probes for AOT cached applications:
apiVersion: apps/v1
kind: Deployment
metadata:
name: myapp-aot
spec:
template:
spec:
containers:
- name: app
readinessProbe:
httpGet:
path: /actuator/health/readiness
port: 8080
# Reduced delays due to faster startup
initialDelaySeconds: 5 # vs 15 for standard JVM
periodSeconds: 2
failureThreshold: 3
livenessProbe:
httpGet:
path: /actuator/health/liveness
port: 8080
initialDelaySeconds: 10 # vs 30 for standard JVM
periodSeconds: 10
This allows Kubernetes to detect and route to new pods much faster, reducing the window of degraded service during scaling events.
# Build with cache
docker build -t myapp:aot .
# Measure startup improvement
time docker run myapp:aot
# Verify functional correctness
./integration-tests.sh
Step 6: Monitor in Production
// Add custom metrics
@Component
public class StartupMetrics implements ApplicationListener<ApplicationReadyEvent> {
@Override
public void onApplicationEvent(ApplicationReadyEvent event) {
long startupTime = System.currentTimeMillis() - event.getTimestamp();
metricsRegistry.gauge("app.startup.duration", startupTime);
}
}
10. Conclusion and Future Outlook
Java 25’s AOT cache represents a pragmatic middle ground between traditional JVM startup characteristics and the extreme optimizations of native compilation. For enterprise Spring applications, the 60-75% startup time improvement comes with minimal code changes and full compatibility with existing frameworks and libraries.
Cost sensitive environments where resource efficiency matters
Applications that cannot adopt GraalVM native image due to dynamic requirements
As the Java ecosystem continues to evolve, AOT caching will likely become a standard optimization technique, much like how JIT compilation became ubiquitous. The relatively simple implementation path and significant performance gains make it accessible to most development teams.
Future enhancements to watch for include:
Improved cache portability across minor Java versions
Automatic training workload generation
Cloud provider managed cache distribution
Integration with service mesh for distributed cache management
For Spring developers specifically, the combination of Spring Boot 3.x native hints, AOT processing, and Java 25 cache support creates a powerful optimization stack that maintains the flexibility of the JVM while approaching native image performance for startup characteristics.
The path forward is clear: as containerization and cloud native architectures become universal, startup time optimization transitions from a nice to have feature to a fundamental requirement. Java 25’s AOT cache provides production ready capability that delivers on this requirement without the complexity overhead of alternative approaches.
The Model Context Protocol (MCP) represents a fundamental shift in how we integrate Large Language Models (LLMs) with external data sources and tools. As enterprises increasingly adopt AI powered applications, understanding MCP’s architecture, operational characteristics, and practical implementation becomes critical for technical leaders building production systems.
1. What is Model Context Protocol?
Model Context Protocol is an open standard developed by Anthropic that enables secure, structured communication between LLM applications and external data sources. Unlike traditional API integrations where each connection requires custom code, MCP provides a standardized interface for LLMs to interact with databases, file systems, business applications, and specialized tools.
At its core, MCP defines three primary components.
The Three Primary Components Explained
MCP Hosts
What they are: The outer application shell, the thing the user actually interacts with. Think of it as the “container” that wants to give an LLM access to external capabilities.
Examples:
Claude Desktop (the application itself)
VS Code with an AI extension like Cursor or Continue
Your custom enterprise chatbot built with Anthropic’s API
An IDE with Copilot style features
The MCP Host doesn’t directly speak the MCP protocol, it delegates that responsibility to its internal MCP Client.
MCP Clients
What they are: A library or component that lives inside the MCP Host and handles all the MCP protocol plumbing. This is where the actual protocol implementation resides.
What they do:
Manage connections to one or more MCP Servers (connection pooling, lifecycle management)
Handle JSON RPC serialization/deserialization
Perform capability discovery (asking MCP Servers “what can you do?”)
Route tool calls from the LLM to the appropriate MCP Server
Manage authentication tokens
Key insight: A single MCP Host contains one MCP Client, but that MCP Client can maintain connections to many MCP Servers simultaneously. When Claude Desktop connects to your filesystem server AND a Postgres server AND a Slack server, the single MCP Client inside Claude Desktop manages all three connections.
MCP Servers
What they are: Lightweight adapters that expose specific capabilities through the MCP protocol. Each MCP Server is essentially a translator between MCP’s standardised interface and some underlying system.
What they do:
Advertise their capabilities (tools, resources, prompts) via the tools/list, resources/list methods
Accept standardised JSON RPC calls and translate them into actual operations
Return results in MCP’s expected format
Examples:
A filesystem MCP Server that exposes read_file, list_directory, search_files
A Postgres MCP Server that exposes query, list_tables, describe_schema
A Slack MCP Server that exposes send_message, list_channels, search_messages
The Relationship Visualised
The MCP Client is the “phone system” inside the MCP Host that knows how to dial and communicate with external MCP Servers. The MCP Host itself is just the building where everything lives.
The protocol itself operates over JSON-RPC 2.0, supporting both stdio and HTTP with Server-Sent Events (SSE) as transport layers. Note: SSE has been recently replaced with Streamable HTTP. This architecture enables both local integrations running as separate processes and remote integrations accessed over HTTP.
2. Problems MCP Solves
Traditional LLM integrations face several architectural challenges that MCP directly addresses.
2.1 Context Fragmentation and Custom Integration Overhead
Before MCP, every LLM application requiring access to enterprise data sources needed custom integration code. A chatbot accessing customer data from Salesforce, product information from a PostgreSQL database, and documentation from Confluence would require three separate integration implementations. Each integration would need its own authentication logic, error handling, rate limiting, and data transformation code.
MCP eliminates this fragmentation by providing a single protocol that works uniformly across all data sources. Once an MCP server exists for Salesforce, PostgreSQL, or Confluence, any MCP compatible host can immediately leverage it without writing integration-specific code. This dramatically reduces the engineering effort required to connect LLMs to existing enterprise systems.
2.2 Dynamic Capability Discovery
Traditional integrations require hardcoded knowledge of available tools and data sources within the application code. If a new database table becomes available or a new API endpoint is added, the application code must be updated, tested, and redeployed.
MCP servers expose their capabilities through standardized discovery mechanisms. When an MCP client connects to a server, it can dynamically query available resources, tools, and prompts. This enables applications to adapt to changing backend capabilities without code changes, supporting more flexible and maintainable architectures.
2.3 Security and Access Control Complexity
Managing security across multiple custom integrations creates significant operational overhead. Each integration might implement authentication differently, use various credential storage mechanisms, and enforce access controls inconsistently.
MCP standardizes authentication and authorization patterns. MCP servers can implement consistent OAuth flows, API key management, or integration with enterprise identity providers. Access controls can be enforced uniformly at the MCP server level, ensuring that users can only access resources they’re authorized to use regardless of which host application initiates the request.
2.4 Resource Efficiency and Connection Multiplexing
LLM applications often need to gather context from multiple sources to respond to a single query. Traditional approaches might open separate connections to each backend system, creating connection overhead and making it difficult to coordinate transactions or maintain consistency.
MCP enables efficient multiplexing where a single host can maintain persistent connections to multiple MCP servers, reusing connections across multiple LLM requests. This reduces connection overhead and enables more sophisticated coordination patterns like distributed transactions or cross system queries.
3. When APIs Are Better Than MCPs
While MCP provides significant advantages for LLM integrations, traditional REST or gRPC APIs remain the superior choice in several scenarios.
3.1 High Throughput, Low-Latency Services
APIs excel in scenarios requiring extreme performance characteristics. A payment processing system handling thousands of transactions per second with sub 10ms latency requirements should use direct API calls rather than the additional protocol overhead of MCP. The JSON RPC serialization, protocol negotiation, and capability discovery mechanisms in MCP introduce latency that’s acceptable for human interactive AI applications but unacceptable for high frequency trading systems or realtime fraud detection engines.
3.2 Machine to Machine Communication Without AI
When building traditional microservices architectures where services communicate directly without AI intermediaries, standard APIs provide simpler, more battle tested solutions. A REST API between your authentication service and user management service doesn’t benefit from MCP’s LLM centric features like prompt templates or context window management.
3.3 Standardized Industry Protocols
Many industries have established API standards that provide interoperability across vendors. Healthcare’s FHIR protocol, financial services’ FIX protocol, or telecommunications’ TMF APIs represent decades of industry collaboration. Wrapping these in MCP adds unnecessary complexity when the underlying APIs already provide well-understood interfaces with extensive tooling and community support.
3.4 Client Applications Without LLM Integration
Mobile apps, web frontends, or IoT devices that don’t incorporate LLM functionality should communicate via standard APIs. MCP’s value proposition centers on making it easier for AI applications to access context and tools. A React dashboard displaying analytics doesn’t need MCP’s capability discovery or prompt templates; it needs predictable, well documented API endpoints.
3.5 Legacy System Integration
Organizations with heavily invested API management infrastructure (API gateways, rate limiting, analytics, monetization) should leverage those existing capabilities rather than introducing MCP as an additional layer. If you’ve already built comprehensive API governance with tools like Apigee, Kong, or AWS API Gateway, adding MCP creates operational complexity without corresponding benefit unless you’re specifically building LLM applications.
4. Strategies and Tools for Managing MCPs at Scale
Operating MCP infrastructure in production environments requires thoughtful approaches to server management, observability, and lifecycle management.
4.1 Centralized MCP Server Registry
Large organizations should implement a centralized registry cataloging all available MCP servers, their capabilities, ownership teams, and SLA commitments. This registry serves as the source of truth for discovery, enabling development teams to find existing MCP servers before building new ones and preventing capability duplication.
A reference implementation might use a PostgreSQL database with tables for servers, capabilities, and access policies:
This registry can expose its own MCP server, enabling AI assistants to help developers discover and connect to appropriate servers through natural language queries.
4.2 MCP Gateway Pattern
For enterprise deployments, implementing an MCP gateway that sits between host applications and backend MCP servers provides several operational advantages:
Authentication and Authorization Consolidation: The gateway can implement centralized authentication, validating JWT tokens or API keys once rather than requiring each MCP server to implement authentication independently. This enables consistent security policies across all MCP integrations.
Rate Limiting and Throttling: The gateway can enforce organization-wide rate limits preventing any single client from overwhelming backend systems. This is particularly important for expensive operations like database queries or API calls to external services with usage based pricing.
Observability and Auditing: The gateway provides a single point to collect telemetry on MCP usage patterns, including which servers are accessed most frequently, which capabilities are used, error rates, and latency distributions. This data informs capacity planning and helps identify problematic integrations.
Protocol Translation: The gateway can translate between transport types, allowing stdio-based MCP servers to be accessed over HTTP/SSE by remote clients, or vice versa. This flexibility enables optimal transport selection based on deployment architecture.
A simplified gateway implementation in Java might look like:
public class MCPGateway {
private final Map<String, MCPServerConnection> serverPool;
private final MetricsCollector metrics;
private final AuthenticationService auth;
public CompletableFuture<MCPResponse> routeRequest(
MCPRequest request,
String authToken) {
// Authenticate
User user = auth.validateToken(authToken);
// Find appropriate server
MCPServerConnection server = serverPool.get(request.getServerId());
// Check authorization
if (!user.canAccess(server)) {
return CompletableFuture.failedFuture(
new UnauthorizedException("Access denied"));
}
// Apply rate limiting
if (!rateLimiter.tryAcquire(user.getId(), server.getId())) {
return CompletableFuture.failedFuture(
new RateLimitException("Rate limit exceeded"));
}
// Record metrics
metrics.recordRequest(server.getId(), request.getMethod());
// Forward request
return server.sendRequest(request)
.whenComplete((response, error) -> {
if (error != null) {
metrics.recordError(server.getId(), error);
} else {
metrics.recordSuccess(server.getId(),
response.getLatencyMs());
}
});
}
}
4.3 Configuration Management
MCP server configurations should be managed through infrastructure as code approaches. Using tools like Kubernetes ConfigMaps, AWS Parameter Store, or HashiCorp Vault, organizations can version control server configurations, implement environment specific settings, and enable automated deployments.
This declarative approach enables GitOps workflows where changes to MCP infrastructure are reviewed, approved, and automatically deployed through CI/CD pipelines.
4.4 Health Monitoring and Circuit Breaking
MCP servers must implement comprehensive health checks and circuit breaker patterns to prevent cascading failures. Each server should expose a health endpoint indicating its operational status and the health of its dependencies.
Implementing circuit breakers prevents scenarios where a failing backend system causes request queuing and resource exhaustion across the entire MCP infrastructure:
public class CircuitBreakerMCPServer {
private final MCPServer delegate;
private final CircuitBreaker circuitBreaker;
public CircuitBreakerMCPServer(MCPServer delegate) {
this.delegate = delegate;
this.circuitBreaker = CircuitBreaker.builder()
.failureRateThreshold(50)
.waitDurationInOpenState(Duration.ofSeconds(30))
.permittedNumberOfCallsInHalfOpenState(5)
.slidingWindowSize(100)
.build();
}
public CompletableFuture<Response> handleRequest(Request req) {
return circuitBreaker.executeSupplier(() ->
delegate.handleRequest(req));
}
}
When the circuit opens due to repeated failures, requests fail fast rather than waiting for timeouts, improving overall system responsiveness and preventing resource exhaustion.
4.5 Version Management and Backward Compatibility
As MCP servers evolve, managing versions and ensuring backward compatibility becomes critical. Organizations should adopt semantic versioning for MCP servers and implement content negotiation mechanisms allowing clients to request specific capability versions.
Servers should maintain compatibility matrices indicating which host versions work with which server versions, and deprecation policies should provide clear timelines for sunsetting old capabilities:
Deploying MCP infrastructure at scale introduces operational complexities that require careful consideration.
5.1 Process Management and Resource Isolation
Stdio based MCP servers run as separate processes spawned by the host application. In high concurrency scenarios, process proliferation can exhaust system resources. A server handling 1000 concurrent users might spawn hundreds of MCP server processes, each consuming memory and file descriptors.
Container orchestration platforms like Kubernetes can help manage these challenges by treating each MCP server as a microservice with resource limits, but this introduces complexity for stdio-based servers that were designed to run as local processes. Organizations must choose between:
Process pooling: Maintain a pool of reusable server processes, multiplexing multiple client connections across fewer processes. This improves resource efficiency but requires careful session management.
HTTP/SSE migration: Convert stdio based servers to HTTP/SSE transport, enabling them to run as traditional web services with well understood scaling characteristics. This requires significant refactoring but provides better operational characteristics.
Serverless architectures: Deploy MCP servers as AWS Lambda functions or similar FaaS offerings. This eliminates process management overhead but introduces cold start latencies and requires servers to be stateless.
5.2 State Management and Transaction Coordination
MCP servers are generally stateless, with each request processed independently. This creates challenges for operations requiring transaction semantics across multiple requests. Consider a workflow where an LLM needs to query customer data, calculate risk scores, and update a fraud detection system. Each operation might target a different MCP server, but they should succeed or fail atomically.
Traditional distributed transaction protocols (2PC, Saga) don’t integrate natively with MCP. Organizations must implement coordination logic either:
Within the host application: The host implements transaction coordination, tracking which servers were involved in a workflow and initiating compensating transactions on failure. This places significant complexity on the host.
Through a dedicated orchestration layer: A separate service manages multi-server workflows, similar to AWS Step Functions or temporal.io. MCP requests become steps in a workflow definition, with the orchestrator handling retries, compensation, and state management.
Via database backed state: MCP servers store intermediate state in a shared database, enabling subsequent requests to access previous results. This requires careful cache invalidation and consistency management.
5.3 Observability and Debugging
When an MCP based application fails, debugging requires tracing requests across multiple server boundaries. Traditional APM tools designed for HTTP based microservices may not provide adequate visibility into MCP request flows, particularly for stdio-based servers.
Organizations need comprehensive logging strategies capturing:
Request traces: Unique identifiers propagated through each MCP request, enabling correlation of log entries across servers.
Protocol level telemetry: Detailed logging of JSON RPC messages, including request timing, payload sizes, and serialization overhead.
Capability usage patterns: Analytics on which tools, resources, and prompts are accessed most frequently, informing capacity planning and server optimization.
Error categorization: Structured error logging distinguishing between client errors (invalid requests), server errors (backend failures), and protocol errors (serialization issues).
Implementing OpenTelemetry instrumentation for MCP servers provides standardized observability:
MCP servers frequently require credentials to access backend systems. Storing these credentials securely while making them available to server processes introduces operational complexity.
Environment variables are commonly used but have security limitations. They’re visible in process listings and container metadata, creating information disclosure risks.
Secret management services like AWS Secrets Manager, HashiCorp Vault, or Kubernetes Secrets provide better security but require additional operational infrastructure and credential rotation strategies.
Workload identity approaches where MCP servers assume IAM roles or service accounts eliminate credential storage entirely but require sophisticated identity federation infrastructure.
Organizations must implement credential rotation without service interruption, requiring either:
Graceful restarts: When credentials change, spawn new server instances with updated credentials, wait for in flight requests to complete, then terminate old instances.
Dynamic credential reloading: Servers periodically check for updated credentials and reload them without restarting, requiring careful synchronization to avoid mid-request credential changes.
5.5 Protocol Versioning and Compatibility
The MCP specification itself evolves over time. As new protocol versions are released, organizations must manage compatibility between hosts using different MCP client versions and servers implementing various protocol versions.
This requires extensive integration testing across version combinations and careful deployment orchestration to prevent breaking changes. Organizations typically establish testing matrices ensuring critical host/server combinations remain functional:
Host Version 1.0 + Server Version 1.x: SUPPORTED
Host Version 1.0 + Server Version 2.x: DEGRADED (missing features)
Host Version 2.0 + Server Version 1.x: SUPPORTED (backward compatible)
Host Version 2.0 + Server Version 2.x: FULLY SUPPORTED
6. MCP Security Concerns and Mitigation Strategies
Security in MCP deployments requires defense in depth approaches addressing authentication, authorization, data protection, and operational security. MCP’s flexibility in connecting LLMs to enterprise systems creates significant attack surface that must be carefully managed.
6.1 Authentication and Identity Management
Concern: MCP servers must authenticate clients to prevent unauthorized access to enterprise resources. Without proper authentication, malicious actors could impersonate legitimate clients and access sensitive data or execute privileged operations.
Mitigation Strategies:
Token-Based Authentication: Implement JWT-based authentication where clients present signed tokens containing identity claims and authorization scopes. Tokens should have short expiration times (15-60 minutes) and be issued by a trusted identity provider:
public class JWTAuthenticatedMCPServer {
private final JWTVerifier verifier;
public CompletableFuture<Response> handleRequest(
Request req,
String authHeader) {
if (authHeader == null || !authHeader.startsWith("Bearer ")) {
return CompletableFuture.failedFuture(
new UnauthorizedException("Missing authentication token"));
}
try {
DecodedJWT jwt = verifier.verify(
authHeader.substring(7));
String userId = jwt.getSubject();
List<String> scopes = jwt.getClaim("scopes")
.asList(String.class);
AuthContext context = new AuthContext(userId, scopes);
return processAuthenticatedRequest(req, context);
} catch (JWTVerificationException e) {
return CompletableFuture.failedFuture(
new UnauthorizedException("Invalid token: " +
e.getMessage()));
}
}
}
Mutual TLS (mTLS): For HTTP/SSE transport, implement mutual TLS authentication where both client and server present certificates. This provides cryptographic assurance of identity and encrypts all traffic:
OAuth 2.0 Integration: Integrate with enterprise OAuth providers (Okta, Auth0, Azure AD) enabling single sign on and centralized access control. Use the authorization code flow for interactive applications and client credentials flow for service accounts.
6.2 Authorization and Access Control
Concern: Authentication verifies identity but doesn’t determine what resources a user can access. Fine grained authorization ensures users can only interact with data and tools appropriate to their role.
Mitigation Strategies:
Role-Based Access Control (RBAC): Define roles with specific permissions and assign users to roles. MCP servers check role membership before executing operations:
public class RBACMCPServer {
private final PermissionChecker permissions;
public CompletableFuture<Response> executeToolCall(
String toolName,
Map<String, Object> args,
AuthContext context) {
Permission required = Permission.forTool(toolName);
if (!permissions.userHasPermission(context.userId(), required)) {
return CompletableFuture.failedFuture(
new ForbiddenException(
"User lacks permission: " + required));
}
return executeTool(toolName, args);
}
}
Attribute Based Access Control (ABAC): Implement policy based authorization evaluating user attributes, resource properties, and environmental context. Use policy engines like Open Policy Agent (OPA):
Resource Level Permissions: Implement granular permissions at the resource level. A user might have access to specific database tables, file directories, or API endpoints but not others:
public CompletableFuture<String> readFile(
String path,
AuthContext context) {
ResourceACL acl = aclService.getACL(path);
if (!acl.canRead(context.userId())) {
throw new ForbiddenException(
"No read permission for: " + path);
}
return fileService.readFile(path);
}
6.3 Prompt Injection and Input Validation
Concern: LLMs can be manipulated through prompt injection attacks where malicious users craft inputs that cause the LLM to ignore instructions or perform unintended actions. When MCP servers execute LLM generated tool calls, these attacks can lead to unauthorized operations.
Mitigation Strategies:
Input Sanitization: Validate and sanitize all tool parameters before execution. Use allowlists for expected values and reject unexpected input patterns:
Parameterized Operations: Use parameterized queries, prepared statements, or API calls rather than string concatenation. This prevents injection attacks by separating code from data:
// VULNERABLE - DO NOT USE
String query = "SELECT * FROM users WHERE id = " + userId;
// SECURE - USE THIS
String query = "SELECT * FROM users WHERE id = ?";
PreparedStatement stmt = connection.prepareStatement(query);
stmt.setString(1, userId);
Output Validation: Validate responses from backend systems before returning them to the LLM. Strip sensitive metadata, error details, or system information that could be exploited:
Capability Restrictions: Limit what tools can do. Read only database access is safer than write access. File operations should be restricted to specific directories. API calls should use service accounts with minimal permissions.
6.4 Data Exfiltration and Privacy
Concern: MCP servers accessing sensitive data could leak information through various channels: overly verbose logging, error messages, responses sent to LLMs, or side channel attacks.
Mitigation Strategies:
Data Classification and Masking: Classify data sensitivity levels and apply appropriate protections. Mask or redact sensitive data in responses:
public class DataMaskingMCPServer {
private final SensitivityClassifier classifier;
public Map<String, Object> prepareResponse(
Map<String, Object> data) {
Map<String, Object> masked = new HashMap<>();
for (Map.Entry<String, Object> entry : data.entrySet()) {
String key = entry.getKey();
Object value = entry.getValue();
SensitivityLevel level = classifier.classify(key);
masked.put(key, switch(level) {
case PUBLIC -> value;
case INTERNAL -> value; // User has internal access
case CONFIDENTIAL -> maskValue(value);
case SECRET -> "[REDACTED]";
});
}
return masked;
}
private Object maskValue(Object value) {
if (value instanceof String s) {
// Show first and last 4 chars for identifiers
if (s.length() <= 8) return "****";
return s.substring(0, 4) + "****" +
s.substring(s.length() - 4);
}
return value;
}
}
Audit Logging: Log all access to sensitive resources with sufficient detail for forensic analysis. Include who accessed what, when, and what was returned:
Data Residency and Compliance: Ensure MCP servers comply with data residency requirements (GDPR, CCPA, HIPAA). Data should not transit regions where it’s prohibited. Implement geographic restrictions:
public class GeofencedMCPServer {
private final Set<String> allowedRegions;
public CompletableFuture<Response> handleRequest(
Request req,
String clientRegion) {
if (!allowedRegions.contains(clientRegion)) {
return CompletableFuture.failedFuture(
new ForbiddenException(
"Access denied from region: " + clientRegion));
}
return processRequest(req);
}
}
Encryption at Rest and in Transit: Encrypt sensitive data stored by MCP servers. Use TLS 1.3 for all network communication. Encrypt configuration files containing credentials:
Concern: Malicious or buggy clients could overwhelm MCP servers with excessive requests, expensive operations, or resource intensive queries, causing service degradation or outages.
Mitigation Strategies:
Rate Limiting: Enforce per user and per client rate limits preventing excessive requests. Use token bucket or sliding window algorithms:
public class RateLimitedMCPServer {
private final LoadingCache<String, RateLimiter> limiters;
public RateLimitedMCPServer() {
this.limiters = CacheBuilder.newBuilder()
.expireAfterAccess(Duration.ofHours(1))
.build(new CacheLoader<String, RateLimiter>() {
public RateLimiter load(String userId) {
// 100 requests per minute per user
return RateLimiter.create(100.0 / 60.0);
}
});
}
public CompletableFuture<Response> handleRequest(
Request req,
AuthContext context) {
RateLimiter limiter = limiters.getUnchecked(context.userId());
if (!limiter.tryAcquire(Duration.ofMillis(100))) {
return CompletableFuture.failedFuture(
new RateLimitException("Rate limit exceeded"));
}
return processRequest(req, context);
}
}
Query Complexity Limits: Restrict expensive operations like full table scans, recursive queries, or large file reads. Set maximum result sizes and execution timeouts:
public CompletableFuture<List<Map<String, Object>>> executeQuery(
String query,
Map<String, Object> params) {
// Analyze query complexity
QueryPlan plan = queryPlanner.analyze(query);
if (plan.estimatedRows() > 10000) {
throw new ValidationException(
"Query too broad, add more filters");
}
if (plan.requiresFullTableScan()) {
throw new ValidationException(
"Full table scans not allowed");
}
// Set execution timeout
return CompletableFuture.supplyAsync(
() -> database.execute(query, params),
executor
).orTimeout(30, TimeUnit.SECONDS);
}
Resource Quotas: Set memory limits, CPU limits, and connection pool sizes preventing any single request from consuming excessive resources:
Request Size Limits: Limit payload sizes preventing clients from sending enormous requests that consume memory during deserialization:
public JSONRPCRequest parseRequest(InputStream input)
throws IOException {
// Limit input to 1MB
BoundedInputStream bounded = new BoundedInputStream(
input, 1024 * 1024);
return objectMapper.readValue(bounded, JSONRPCRequest.class);
}
6.6 Supply Chain and Dependency Security
Concern: MCP servers depend on libraries, frameworks, and runtime environments. Vulnerabilities in dependencies can compromise security even if your code is secure.
Mitigation Strategies:
Dependency Scanning: Regularly scan dependencies for known vulnerabilities using tools like OWASP Dependency Check, Snyk, or GitHub Dependabot:
Dependency Pinning: Pin exact versions of dependencies rather than using version ranges. This prevents unexpected updates introducing vulnerabilities:
<!-- BAD - version ranges -->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>[2.0,3.0)</version>
</dependency>
<!-- GOOD - exact version -->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.16.1</version>
</dependency>
Minimal Runtime Environments: Use minimal base images for containers reducing attack surface. Distroless images contain only your application and runtime dependencies:
Code Signing: Sign MCP server artifacts enabling verification of authenticity and integrity. Clients should verify signatures before executing servers:
Credential Rotation: Implement automatic credential rotation. When credentials change, update secret stores and restart servers gracefully:
public class RotatingCredentialProvider {
private volatile Credential currentCredential;
private final ScheduledExecutorService scheduler;
public RotatingCredentialProvider() {
this.scheduler = Executors.newSingleThreadScheduledExecutor();
this.currentCredential = loadCredential();
// Check for new credentials every 5 minutes
scheduler.scheduleAtFixedRate(
this::refreshCredential,
5, 5, TimeUnit.MINUTES);
}
private void refreshCredential() {
try {
Credential newCred = loadCredential();
if (!newCred.equals(currentCredential)) {
logger.info("Credential updated");
currentCredential = newCred;
}
} catch (Exception e) {
logger.error("Failed to refresh credential", e);
}
}
public Credential getCredential() {
return currentCredential;
}
}
Least Privilege: Credentials should have minimum necessary permissions. Database credentials should only access specific schemas. API keys should have restricted scopes:
-- Create limited database user
CREATE USER mcp_server WITH PASSWORD 'generated-password';
GRANT CONNECT ON DATABASE analytics TO mcp_server;
GRANT SELECT ON TABLE public.aggregated_metrics TO mcp_server;
-- Explicitly NOT granted: INSERT, UPDATE, DELETE
6.8 Network Security
Concern: MCP traffic between clients and servers could be intercepted, modified, or spoofed if not properly secured.
Mitigation Strategies:
TLS Everywhere: Encrypt all network communication using TLS 1.3. Reject connections using older protocols:
Network Segmentation: Deploy MCP servers in isolated network segments. Use security groups or network policies restricting which services can communicate:
VPN or Private Connectivity: For remote MCP servers, use VPNs or cloud provider private networking (AWS PrivateLink, Azure Private Link) instead of exposing servers to the public internet.
DDoS Protection: Use cloud provider DDoS protection services (AWS Shield, Cloudflare) for HTTP/SSE servers exposed to the internet.
6.9 Compliance and Audit
Concern: Organizations must demonstrate compliance with regulatory requirements (SOC 2, ISO 27001, HIPAA, PCI DSS) and provide audit trails for security incidents.
Mitigation Strategies:
Comprehensive Audit Logging: Log all security relevant events including authentication attempts, authorization failures, data access, and configuration changes:
Immutable Audit Logs: Store audit logs in write once storage preventing tampering. Use services like AWS CloudWatch Logs with retention policies or dedicated SIEM systems.
Regular Security Assessments: Conduct penetration testing and vulnerability assessments. Test MCP servers for OWASP Top 10 vulnerabilities, injection attacks, and authorization bypasses.
Incident Response Plans: Develop and test incident response procedures for MCP security incidents. Include runbooks for common scenarios like credential compromise or data exfiltration.
Security Training: Train developers on secure MCP development practices. Review code for security issues before deployment. Implement secure coding standards.
7. Open Source Tools for Managing and Securing MCPs
The MCP ecosystem includes several open source projects addressing common operational challenges.
7.1 MCP Inspector
MCP Inspector is a debugging tool that provides visibility into MCP protocol interactions. It acts as a proxy between hosts and servers, logging all JSON-RPC messages, timing information, and error conditions. This is invaluable during development and troubleshooting production issues.
Key features include:
Protocol validation: Ensures messages conform to the MCP specification, catching serialization errors and malformed requests.
Interactive testing: Allows developers to manually craft MCP requests and observe server responses without building a full host application.
Traffic recording: Captures request/response pairs for later analysis or regression testing.
Anthropic provides official SDKs in multiple languages that handle protocol implementation details, allowing developers to focus on business logic rather than JSON-RPC serialization and transport management.
These SDKs provide:
Standardized server lifecycle management: Handle initialization, capability registration, and graceful shutdown.
Type safe request handling: Generate strongly typed interfaces for tool parameters and resource schemas.
Built in error handling: Convert application exceptions into properly formatted MCP error responses.
Transport abstraction: Support both stdio and HTTP/SSE transports with a unified programming model.
MCP Proxy is an open source gateway implementation providing authentication, rate limiting, and protocol translation capabilities. It’s designed for production deployments requiring centralized control over MCP traffic.
Features include:
JWT-based authentication: Validates bearer tokens before forwarding requests to backend servers.
Redis-backed rate limiting: Enforces per-user or per-client request quotas using Redis for distributed rate limiting across multiple proxy instances.
Prometheus metrics: Exposes request rates, latencies, and error rates for monitoring integration.
Protocol transcoding: Allows stdio-based servers to be accessed via HTTP/SSE, enabling remote access to local development servers.
This testing framework provides standardized performance benchmarks for MCP servers, enabling organizations to compare implementations and identify performance regressions.
The suite includes:
Latency benchmarks: Measures request-response times under varying concurrency levels.
Throughput testing: Determines maximum sustainable request rates for different server configurations.
Resource utilization profiling: Tracks memory consumption, CPU usage, and file descriptor consumption during load tests.
Protocol overhead analysis: Quantifies serialization costs and transport overhead versus direct API calls.
After restarting Claude Desktop, the filesystem tools will be available for the AI assistant to use when helping with file-related tasks.
8.7 Extending the Server
This basic implementation can be extended with additional capabilities:
Write operations: Add tools for creating, updating, and deleting files. Implement careful permission checks and audit logging for destructive operations.
File watching: Implement resource subscriptions that notify the host when files change, enabling reactive workflows.
Advanced search: Add full-text search capabilities using Apache Lucene or similar indexing technologies.
Git integration: Expose Git operations as tools, enabling the AI to understand repository history and make commits.
Permission management: Implement fine-grained access controls based on user identity or role.
9. Conclusion
Model Context Protocol represents a significant step toward standardizing how AI applications interact with external systems. For organizations building LLM-powered products, MCP reduces integration complexity, improves security posture, and enables more maintainable architectures.
However, MCP is not a universal replacement for APIs. Traditional REST or gRPC interfaces remain superior for high-performance machine-to-machine communication, established industry protocols, and applications without AI components.
Operating MCP infrastructure at scale requires thoughtful approaches to server management, observability, security, and version control. The operational challenges around process management, state coordination, and distributed debugging require careful consideration during architectural planning.
Security concerns in MCP deployments demand comprehensive strategies addressing authentication, authorization, input validation, data protection, resource management, and compliance. Organizations must implement defense-in-depth approaches recognizing that MCP servers become critical security boundaries when connecting LLMs to enterprise systems.
The growing ecosystem of open source tooling for MCP management and security demonstrates community recognition of these challenges and provides practical solutions for enterprise deployments. As the protocol matures and adoption increases, we can expect continued evolution of both the specification and the supporting infrastructure.
For development teams considering MCP adoption, start with a single high-value integration to understand operational characteristics before expanding to organization-wide deployments. Invest in observability infrastructure early, establish clear governance policies for server development and deployment, and build reusable patterns that can be shared across teams.
The Java tutorial provided demonstrates that implementing MCP servers is straightforward, requiring only JSON-RPC handling and domain-specific logic. This simplicity enables rapid development of custom integrations tailored to your organization’s unique requirements.
As AI capabilities continue advancing, standardized protocols like MCP will become increasingly critical infrastructure, similar to how HTTP became foundational to web applications. Organizations investing in MCP expertise and infrastructure today position themselves well for the AI-powered applications of tomorrow.
Java’s concurrency model has undergone a revolutionary transformation with the introduction of Virtual Threads in Java 19 (as a preview feature) and their stabilization in Java 21. With Java 25, virtual threads have reached new levels of maturity by addressing critical pinning issues that previously limited their effectiveness. This article explores the evolution of threading models in Java, the problems virtual threads solve, and how Java 25 has refined this powerful concurrency primitive.
Virtual threads represent a paradigm shift in how we write concurrent Java applications. They enable the traditional thread per request model to scale to millions of concurrent operations without the resource overhead that plagued platform threads. Understanding virtual threads is essential for modern Java developers building high throughput, scalable applications.
2. The Problem with Traditional Platform Threads
2.1. Platform Thread Architecture
Platform threads (also called OS threads or kernel threads) are the traditional concurrency mechanism in Java. Each Java thread is a thin wrapper around an operating system thread, which looks like:
2.2. Resource Constraints
Platform threads are expensive resources:
Memory Overhead: Each platform thread requires a stack (typically 1MB by default), which means 1,000 threads consume approximately 1GB of memory just for stacks.
Context Switching Cost: The OS scheduler must perform context switches between threads, saving and restoring CPU registers, memory mappings, and other state.
Limited Scalability: Creating tens of thousands of platform threads leads to:
Memory exhaustion
Increased context switching overhead
CPU cache thrashing
Scheduler contention
2.3. The Thread Pool Pattern and Its Limitations
To manage these constraints, developers traditionally use thread pools:
ExecutorService executor = Executors.newFixedThreadPool(200);
// Submit tasks to the pool
for (int i = 0; i < 10000; i++) {
executor.submit(() -> {
// Perform I/O operation
String data = fetchDataFromDatabase();
processData(data);
});
}
Problems with Thread Pools:
Task Queuing: With limited threads, tasks queue up waiting for available threads
Resource Underutilization: Threads blocked on I/O waste CPU time
Complexity: Tuning pool sizes becomes an art form
Poor Observability: Stack traces don’t reflect actual application structure
2.4. The Reactive Programming Alternative
To avoid blocking threads, reactive programming emerged:
Steep Learning Curve: Requires understanding operators like flatMap, zip, merge
Difficult Debugging: Stack traces are fragmented and hard to follow
Imperative to Declarative: Forces a complete mental model shift
Library Compatibility: Not all libraries support reactive patterns
Error Handling: Becomes significantly more complex
3. Enter Virtual Threads: Lightweight Concurrency
3.1. The Virtual Thread Concept
Virtual threads are lightweight threads managed by the JVM rather than the operating system. They enable the thread per task programming model to scale:
Key Characteristics:
Cheap to Create: Creating a virtual thread takes microseconds and minimal memory
JVM Managed: The JVM scheduler multiplexes virtual threads onto a small pool of OS threads (carrier threads)
Blocking is Fine: When a virtual thread blocks on I/O, the JVM unmounts it from its carrier thread
Millions Scale: You can create millions of virtual threads without exhausting memory
3.2. How Virtual Threads Work Under the Hood
The key innovation of virtual threads lies in how they interact with carrier threads. Understanding this mechanism is essential to grasping why virtual threads scale so effectively.
The Mount and Unmount Cycle
Virtual threads don’t run directly on the CPU. Instead, they temporarily “mount” onto platform threads called carrier threads. When a virtual thread needs to perform actual computation, the JVM assigns it to an available carrier thread. When it blocks on I/O or other operations, the virtual thread “unmounts,” freeing that carrier thread to run other virtual threads.
This mounting and unmounting happens automatically and transparently. The diagram below illustrates this cycle:
Step by Step Process:
Initial State: Multiple virtual threads (VT1, VT2, VT3) exist in memory, ready to execute. A small pool of carrier threads (platform threads) waits to execute work.
Mounting: VT1 mounts onto Carrier Thread 1 and begins executing code. The virtual thread now has access to CPU resources through its carrier.
Blocking Operation: VT1 encounters a blocking operation (like Thread.sleep(), a database query, or an HTTP request). Rather than forcing the carrier thread to wait idly, the JVM saves VT1’s execution state.
Unmounting: VT1 unmounts from Carrier Thread 1, which immediately becomes available for other work. The carrier thread is now free to run VT2 or VT3.
Continuation: While VT1 waits for its I/O operation to complete, VT2 can mount onto the same Carrier Thread 1 and begin executing. One carrier thread can effectively support hundreds or thousands of virtual threads by rapidly switching between them whenever they block.
Remounting: When VT1’s blocking operation completes (the database responds, the sleep finishes, etc.), VT1 becomes eligible to run again. The JVM schedules it onto any available carrier thread—not necessarily the same one it used before—restores its saved state, and execution continues from where it left off.
This cycle repeats continuously. Virtual threads spend most of their time unmounted, consuming minimal resources. They only occupy carrier threads during active computation, allowing a small number of carrier threads to support millions of virtual threads efficiently.
Why This Matters
Traditional platform threads would block the underlying OS thread during I/O operations, wasting valuable CPU time. Virtual threads eliminate this waste by releasing the carrier thread immediately upon blocking. This is why you can have a million virtual threads but only need a handful of carrier threads—most virtual threads are waiting for I/O at any given moment, not performing computation.
The next section explores the continuation mechanism that makes this mounting and unmounting possible.. The Continuation Mechanism
Virtual threads use a mechanism called continuations. Below is an explanation of the continuation mechanism:
A virtual thread begins executing on some carrier (an OS thread under the hood), as though it were a normal thread.
When it hits a blocking operation (I/O, sleep, etc), the runtime arranges to save where it is (its stack frames, locals) into a continuation object (or the equivalent mechanism).
That carrier thread is released (so it can run other virtual threads) while the virtual thread is waiting.
Later when the blocking completes / the virtual thread is ready to resume, the continuation is scheduled on some carrier thread, its state restored and execution continues.
A simplified conceptual model looks like this:
// Simplified conceptual representation
class VirtualThread {
Continuation continuation;
Object mountedCarrierThread;
void park() {
// Save execution state
continuation.yield();
// Unmount from carrier thread
mountedCarrierThread = null;
}
void unpark() {
// Find available carrier thread
mountedCarrierThread = getAvailableCarrier();
// Restore execution state
continuation.run();
}
}
This example shows how virtual threads simplify server design by allowing each incoming HTTP request to be handled in its own virtual thread, just like the classic thread-per-request model—only now it scales.
The code below creates an executor that launches a new virtual thread for every request. Inside that thread, the handler performs blocking I/O (reading the request and writing the response) in a natural, linear style. There’s no need for callbacks, reactive chains, or custom thread pools, because blocking no longer ties up an OS thread.
Each request runs independently, errors are isolated, and the system can support a very large number of concurrent connections thanks to the low cost of virtual threads.
The new virtual thread version is dramatically simpler because it uses plain blocking code without threadpool tuning, callback handlers, or complex asynchronous frameworks.
// Traditional Platform Thread Approach
public class PlatformThreadServer {
private static final ExecutorService executor =
Executors.newFixedThreadPool(200);
public void handleRequest(HttpRequest request) {
executor.submit(() -> {
try {
// Simulate database query (blocking I/O)
Thread.sleep(100);
String data = queryDatabase(request);
// Simulate external API call (blocking I/O)
Thread.sleep(50);
String apiResult = callExternalApi(data);
sendResponse(apiResult);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
});
}
}
// Virtual Thread Approach
public class VirtualThreadServer {
private static final ExecutorService executor =
Executors.newVirtualThreadPerTaskExecutor();
public void handleRequest(HttpRequest request) {
executor.submit(() -> {
try {
// Same blocking code, but now scalable!
Thread.sleep(100);
String data = queryDatabase(request);
Thread.sleep(50);
String apiResult = callExternalApi(data);
sendResponse(apiResult);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
});
}
}
Performance Comparison:
Platform Thread Server (200 thread pool):
- Max concurrent requests: ~200
- Memory overhead: ~200MB (thread stacks)
- Throughput: Limited by pool size
Virtual Thread Server:
- Max concurrent requests: ~1,000,000+
- Memory overhead: ~1MB per 1000 threads
- Throughput: Limited by available I/O resources
4.4. Structured Concurrency
Traditional Java concurrency makes it easy to start threads but hard to control their lifecycle. Tasks can outlive the method that created them, failures get lost, and background work becomes difficult to reason about.
Structured concurrency fixes this by enforcing a simple rule:
tasks started in a scope must finish before the scope exits.
This gives you predictable ownership, automatic cleanup, and reliable error propagation.
With virtual threads, this model finally becomes practical. Virtual threads are cheap to create and safe to block, so you can express concurrent logic using straightforward, synchronous-looking code—without thread pools or callbacks.
Example
try (var scope = new StructuredTaskScope.ShutdownOnFailure()) {
var f1 = scope.fork(() -> fetchUser(id));
var f2 = scope.fork(() -> fetchOrders(id));
scope.join();
scope.throwIfFailed();
return new UserData(f1.get(), f2.get());
}
All tasks run concurrently, but the structure remains clear:
the parent waits for all children,
failures propagate correctly,
and no threads leak beyond the scope.
In short: virtual threads provide the scalability; structured concurrency provides the clarity. Together they make concurrent Java code simple, safe, and predictable.
5. Issues with Virtual Threads Before Java 25
5.1. The Pinning Problem
The most significant issue with virtual threads before Java 25 was “pinning” – situations where a virtual thread could not unmount from its carrier thread when blocking, defeating the purpose of virtual threads.
Pinning occurred in two main scenarios:
5.1.1. Synchronized Blocks
public class PinningExample {
private final Object lock = new Object();
public void problematicMethod() {
synchronized (lock) { // PINNING OCCURS HERE
try {
// This sleep pins the carrier thread
Thread.sleep(1000);
// I/O operations also pin
String data = blockingDatabaseCall();
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
}
}
}
What happens during pinning:
5.1.2. Native Methods and Foreign Functions
public class NativePinningExample {
public void callNativeCode() {
// JNI calls pin the virtual thread
nativeMethod(); // PINNING
}
private native void nativeMethod();
public void foreignFunctionCall() {
// Foreign function calls (Project Panama) also pin
try (Arena arena = Arena.ofConfined()) {
MemorySegment segment = arena.allocate(100);
// Operations here may pin
}
}
}
5.2. Monitoring Pinning Events
Before Java 25, you could detect pinning with JVM flags:
Before Java 25, libraries and applications had to refactor synchronized code:
// Pre-Java 25: Had to refactor to avoid pinning
public class PreJava25Approach {
// Changed from Object to ReentrantLock
private final ReentrantLock lock = new ReentrantLock();
public void doWork() {
lock.lock(); // More verbose
try {
blockingOperation();
} finally {
lock.unlock();
}
}
}
// Java 25+: Can keep existing synchronized code
public class Java25Approach {
private final Object lock = new Object();
public synchronized void doWork() { // Simple, no pinning
blockingOperation();
}
}
6.5. Remaining Pinning Scenarios
Java 25 removes most cases where virtual threads could become pinned, but a few situations can still prevent a virtual thread from unmounting from its carrier thread:
1. Blocking Native Calls (JNI)
If a virtual thread enters a JNI method that blocks, the JVM cannot safely suspend it, so the carrier thread remains pinned until the native call returns.
2. Synchronized Blocks Leading Into Native Work
Although Java-level synchronization no longer pins, a synchronized section that transitions into a blocking native operation can still force the carrier thread to stay attached.
3. Low-Level APIs Requiring Thread Affinity
Code using Unsafe, custom locks, or mechanisms that assume a fixed OS thread may require pinning to maintain correctness.
6.6. Migration Benefits
Existing codebases automatically benefit from Java 25:
// Legacy code using synchronized (common in older libraries)
public class LegacyService {
private final Map<String, Data> cache = new HashMap<>();
public synchronized Data getData(String key) {
if (!cache.containsKey(key)) {
// This would pin in Java 21-24
// No pinning in Java 25!
Data data = expensiveDatabaseCall(key);
cache.put(key, data);
}
return cache.get(key);
}
private Data expensiveDatabaseCall(String key) {
// Blocking I/O
return new Data();
}
record Data() {}
}
7. Understanding ForkJoinPool and Virtual Thread Scheduling
Virtual threads behave as if each one runs independently, but they do not execute directly on the CPU. Instead, the JVM schedules them onto a small set of real OS threads known as carrier threads. These carrier threads are managed by the ForkJoinPool, which serves as the internal scheduler that runs, pauses, and resumes virtual threads.
This scheduling model allows Java to scale to massive levels of concurrency without overwhelming the operating system.
7.1 What the ForkJoinPool Is
The ForkJoinPool is a high-performance thread pool built around a small number of long-lived worker threads. It was originally designed for parallel computations but is also ideal for running virtual threads because of its extremely efficient scheduling behaviour.
Each worker thread maintains its own task queue, allowing most operations to happen without contention. The pool is designed to keep all CPU cores busy with minimal overhead.
7.2 The Work-Stealing Algorithm
A defining feature of the ForkJoinPool is its work-stealing algorithm. Each worker thread primarily works from its own queue, but when it becomes idle, it doesn’t wait—it looks for work in other workers’ queues.
In other words:
Active workers process their own tasks.
Idle workers “steal” tasks from other queues.
Stealing avoids bottlenecks and keeps all CPU cores busy.
Tasks spread dynamically across the pool, improving throughput.
This decentralized approach avoids the cost of a single shared queue and ensures that no CPU thread sits idle while others still have work.
Work-stealing is one of the main reasons the ForkJoinPool can handle huge numbers of virtual threads efficiently.
7.3 Why Virtual Threads Use the ForkJoinPool
Virtual threads frequently block during operations like I/O, sleeping, or locking. When a virtual thread blocks, the JVM can save its execution state and immediately free the carrier thread.
To make this efficient, Java needs a scheduler that can:
quickly reassign work to available carrier threads
keep CPUs fully utilized
handle thousands or millions of short-lived tasks
pick up paused virtual threads instantly when they resume
The ForkJoinPool, with its lightweight scheduling and work-stealing algorithm, suited these needs perfectly.
7.4 How Virtual Thread Scheduling Works
The scheduling process works as follows:
A virtual thread becomes runnable.
The ForkJoinPool assigns it to an available carrier thread.
The virtual thread executes until it blocks.
The JVM captures its state and unmounts it, freeing the carrier thread.
When the blocking operation completes, the virtual thread is placed back into the pool’s queues.
Any available carrier thread—regardless of which one ran it earlier—can resume it.
Because virtual threads run only when actively computing, and unmount the moment they block, the ForkJoinPool keeps the system efficient and responsive.
7.5 Why This Design Scales
This architecture scales exceptionally well:
Few OS threads handle many virtual threads.
Blocking is cheap, because it releases carrier threads instantly.
Work-stealing ensures every CPU is busy and load-balanced.
Context switching is lightweight compared to OS thread switching.
Developers write simple blocking code, without worrying about thread pool exhaustion.
It gives Java the scalability of an asynchronous runtime with the readability of synchronous code.
7.6 Misconceptions About the ForkJoinPool
Although virtual threads rely on a ForkJoinPool internally, they do not interfere with:
parallel streams,
custom ForkJoinPools created by the application,
or other thread pools.
The virtual-thread scheduler is isolated, and it normally requires no configuration or tuning.
The ForkJoinPool, powered by its work-stealing algorithm, provides the small number of OS threads and the efficient scheduling needed to run them at scale. Together, they allow Java to deliver enormous concurrency without the complexity or overhead of traditional threading models.
8. Virtual Threads vs. Reactive Programming
8.1. Code Complexity Comparison
// Scenario: Fetch user data, enrich with profile, save to database
// Reactive approach (Spring WebFlux)
public class ReactiveUserService {
public Mono<User> processUser(String userId) {
return userRepository.findById(userId)
.flatMap(user ->
profileService.getProfile(user.getProfileId())
.map(profile -> user.withProfile(profile))
)
.flatMap(user ->
enrichmentService.enrichData(user)
)
.flatMap(user ->
userRepository.save(user)
)
.doOnError(error ->
log.error("Error processing user", error)
)
.timeout(Duration.ofSeconds(5))
.retry(3);
}
}
// Virtual thread approach (Spring Boot with Virtual Threads)
public class VirtualThreadUserService {
public User processUser(String userId) {
try {
// Simple, sequential code that scales
User user = userRepository.findById(userId);
Profile profile = profileService.getProfile(user.getProfileId());
user = user.withProfile(profile);
user = enrichmentService.enrichData(user);
return userRepository.save(user);
} catch (Exception e) {
log.error("Error processing user", e);
throw e;
}
}
}
8.2. Error Handling Comparison
// Reactive error handling
public Mono<Result> reactiveProcessing() {
return fetchData()
.flatMap(data -> validate(data))
.flatMap(data -> process(data))
.onErrorResume(ValidationException.class, e ->
Mono.just(Result.validationFailed(e)))
.onErrorResume(ProcessingException.class, e ->
Mono.just(Result.processingFailed(e)))
.onErrorResume(e ->
Mono.just(Result.unknownError(e)));
}
// Virtual thread error handling
public Result virtualThreadProcessing() {
try {
Data data = fetchData();
validate(data);
return process(data);
} catch (ValidationException e) {
return Result.validationFailed(e);
} catch (ProcessingException e) {
return Result.processingFailed(e);
} catch (Exception e) {
return Result.unknownError(e);
}
}
8.3. When to Use Each Approach
Use Virtual Threads When:
You want simple, readable code
Your team is familiar with imperative programming
You need easy debugging with clear stack traces
You’re working with blocking APIs
You want to migrate existing code with minimal changes
Consider Reactive When:
You need backpressure handling
You’re building streaming data pipelines
You need fine grained control over execution
Your entire stack is already reactive
9. Advanced Virtual Thread Patterns
9.1. Fan Out / Fan In Pattern
public class FanOutFanInPattern {
public CompletedReport generateReport(List<String> dataSourceIds) throws Exception {
try (var scope = new StructuredTaskScope.ShutdownOnFailure()) {
// Fan out: Submit tasks for each data source
List<Subtask<DataChunk>> tasks = dataSourceIds.stream()
.map(id -> scope.fork(() -> fetchFromDataSource(id)))
.toList();
// Wait for all to complete
scope.join();
scope.throwIfFailed();
// Fan in: Combine results
List<DataChunk> allData = tasks.stream()
.map(Subtask::get)
.toList();
return aggregateReport(allData);
}
}
private DataChunk fetchFromDataSource(String id) throws InterruptedException {
Thread.sleep(100); // Simulate I/O
return new DataChunk(id, "Data from " + id);
}
private CompletedReport aggregateReport(List<DataChunk> chunks) {
return new CompletedReport(chunks);
}
record DataChunk(String sourceId, String data) {}
record CompletedReport(List<DataChunk> chunks) {}
}
9.2. Rate Limited Processing
public class RateLimitedProcessor {
private final Semaphore rateLimiter;
private final ExecutorService executor;
public RateLimitedProcessor(int maxConcurrent) {
this.rateLimiter = new Semaphore(maxConcurrent);
this.executor = Executors.newVirtualThreadPerTaskExecutor();
}
public void processItems(List<Item> items) throws InterruptedException {
CountDownLatch latch = new CountDownLatch(items.size());
for (Item item : items) {
executor.submit(() -> {
try {
rateLimiter.acquire();
try {
processItem(item);
} finally {
rateLimiter.release();
}
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
} finally {
latch.countDown();
}
});
}
latch.await();
}
private void processItem(Item item) throws InterruptedException {
Thread.sleep(50); // Simulate processing
System.out.println("Processed: " + item.id());
}
public void shutdown() {
executor.close();
}
record Item(String id) {}
public static void main(String[] args) throws InterruptedException {
RateLimitedProcessor processor = new RateLimitedProcessor(10);
List<Item> items = IntStream.range(0, 100)
.mapToObj(i -> new Item("item-" + i))
.toList();
long start = System.currentTimeMillis();
processor.processItems(items);
long duration = System.currentTimeMillis() - start;
System.out.println("Processed " + items.size() +
" items in " + duration + "ms");
processor.shutdown();
}
}
9.3. Timeout Pattern
public class TimeoutPattern {
public <T> T executeWithTimeout(Callable<T> task, Duration timeout)
throws Exception {
try (var scope = new StructuredTaskScope.ShutdownOnFailure()) {
Subtask<T> subtask = scope.fork(task);
// Join with timeout
scope.joinUntil(Instant.now().plus(timeout));
if (subtask.state() == Subtask.State.SUCCESS) {
return subtask.get();
} else {
throw new TimeoutException("Task did not complete within " + timeout);
}
}
}
public static void main(String[] args) {
TimeoutPattern pattern = new TimeoutPattern();
try {
String result = pattern.executeWithTimeout(
() -> {
Thread.sleep(5000);
return "Completed";
},
Duration.ofSeconds(2)
);
System.out.println("Result: " + result);
} catch (TimeoutException e) {
System.out.println("Task timed out!");
} catch (Exception e) {
e.printStackTrace();
}
}
}
9.4. Racing Tasks Pattern
public class RacingTasksPattern {
public <T> T race(List<Callable<T>> tasks) throws Exception {
try (var scope = new StructuredTaskScope.ShutdownOnSuccess<T>()) {
// Submit all tasks
for (Callable<T> task : tasks) {
scope.fork(task);
}
// Wait for first success
scope.join();
// Return the first result
return scope.result();
}
}
public static void main(String[] args) throws Exception {
RacingTasksPattern pattern = new RacingTasksPattern();
List<Callable<String>> tasks = List.of(
() -> {
Thread.sleep(1000);
return "Server 1 response";
},
() -> {
Thread.sleep(500);
return "Server 2 response";
},
() -> {
Thread.sleep(2000);
return "Server 3 response";
}
);
long start = System.currentTimeMillis();
String result = pattern.race(tasks);
long duration = System.currentTimeMillis() - start;
System.out.println("Winner: " + result);
System.out.println("Time: " + duration + "ms");
// Output: Winner: Server 2 response, Time: ~500ms
}
}
10. Best Practices and Gotchas
10.1. ThreadLocal Considerations
Virtual threads and ThreadLocal can lead to memory issues:
public class ThreadLocalIssues {
// PROBLEM: ThreadLocal with virtual threads
private static final ThreadLocal<ExpensiveResource> resource =
ThreadLocal.withInitial(ExpensiveResource::new);
public void problematicUsage() {
// With millions of virtual threads, millions of instances!
ExpensiveResource r = resource.get();
r.doWork();
}
// SOLUTION 1: Use scoped values (Java 21+)
private static final ScopedValue<ExpensiveResource> scopedResource =
ScopedValue.newInstance();
public void betterUsage() {
ExpensiveResource r = new ExpensiveResource();
ScopedValue.where(scopedResource, r).run(() -> {
ExpensiveResource scoped = scopedResource.get();
scoped.doWork();
});
}
// SOLUTION 2: Pass as parameters
public void bestUsage(ExpensiveResource resource) {
resource.doWork();
}
static class ExpensiveResource {
private final byte[] data = new byte[1024 * 1024]; // 1MB
void doWork() {
// Work with resource
}
}
}
10.2. Don’t Block the Carrier Thread Pool
public class CarrierThreadPoolGotchas {
// BAD: CPU intensive work in virtual threads
public void cpuIntensiveWork() {
try (ExecutorService executor = Executors.newVirtualThreadPerTaskExecutor()) {
for (int i = 0; i < 1000; i++) {
executor.submit(() -> {
// This blocks a carrier thread with CPU work
computePrimes(1_000_000);
});
}
}
}
// GOOD: Use platform thread pool for CPU work
public void properCpuWork() {
try (ExecutorService executor = Executors.newFixedThreadPool(
Runtime.getRuntime().availableProcessors())) {
for (int i = 0; i < 1000; i++) {
executor.submit(() -> {
computePrimes(1_000_000);
});
}
}
}
// VIRTUAL THREADS: Best for I/O bound work
public void ioWork() {
try (ExecutorService executor = Executors.newVirtualThreadPerTaskExecutor()) {
for (int i = 0; i < 1_000_000; i++) {
executor.submit(() -> {
try {
// I/O operations: perfect for virtual threads
String data = fetchFromDatabase();
sendToAPI(data);
} catch (Exception e) {
e.printStackTrace();
}
});
}
}
}
private void computePrimes(int limit) {
// CPU intensive calculation
for (int i = 2; i < limit; i++) {
boolean isPrime = true;
for (int j = 2; j <= Math.sqrt(i); j++) {
if (i % j == 0) {
isPrime = false;
break;
}
}
}
}
private String fetchFromDatabase() {
return "data";
}
private void sendToAPI(String data) {
// API call
}
}
10.3. Monitoring and Observability
public class VirtualThreadMonitoring {
public static void main(String[] args) throws Exception {
// Enable virtual thread events
System.setProperty("jdk.tracePinnedThreads", "full");
// Get thread metrics
ThreadMXBean threadBean = ManagementFactory.getThreadMXBean();
try (ExecutorService executor = Executors.newVirtualThreadPerTaskExecutor()) {
// Submit many tasks
List<Future<?>> futures = new ArrayList<>();
for (int i = 0; i < 10000; i++) {
futures.add(executor.submit(() -> {
try {
Thread.sleep(100);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
}));
}
// Monitor while tasks execute
Thread.sleep(50);
System.out.println("Thread count: " + threadBean.getThreadCount());
System.out.println("Peak threads: " + threadBean.getPeakThreadCount());
// Wait for completion
for (Future<?> future : futures) {
future.get();
}
}
System.out.println("Final thread count: " + threadBean.getThreadCount());
}
}
10.4. Structured Concurrency Best Practices
public class StructuredConcurrencyBestPractices {
// GOOD: Properly structured with clear lifecycle
public Result processWithStructure() throws Exception {
try (var scope = new StructuredTaskScope.ShutdownOnFailure()) {
Subtask<Data> dataTask = scope.fork(this::fetchData);
Subtask<Config> configTask = scope.fork(this::fetchConfig);
scope.join();
scope.throwIfFailed();
return new Result(dataTask.get(), configTask.get());
} // Scope ensures all tasks complete or are cancelled
}
// BAD: Unstructured concurrency (avoid)
public Result processWithoutStructure() {
CompletableFuture<Data> dataFuture =
CompletableFuture.supplyAsync(this::fetchData);
CompletableFuture<Config> configFuture =
CompletableFuture.supplyAsync(this::fetchConfig);
// No clear lifecycle, potential resource leaks
return new Result(
dataFuture.join(),
configFuture.join()
);
}
private Data fetchData() {
return new Data();
}
private Config fetchConfig() {
return new Config();
}
record Data() {}
record Config() {}
record Result(Data data, Config config) {}
}
11. Real World Use Cases
11.1. Web Server with Virtual Threads
// Spring Boot 3.2+ with Virtual Threads
@SpringBootApplication
public class VirtualThreadWebApp {
public static void main(String[] args) {
SpringApplication.run(VirtualThreadWebApp.class, args);
}
@Bean
public TomcatProtocolHandlerCustomizer<?> protocolHandlerVirtualThreadExecutorCustomizer() {
return protocolHandler -> {
protocolHandler.setExecutor(Executors.newVirtualThreadPerTaskExecutor());
};
}
}
@RestController
@RequestMapping("/api")
class UserController {
@Autowired
private UserService userService;
@GetMapping("/users/{id}")
public ResponseEntity<User> getUser(@PathVariable String id) {
// This runs on a virtual thread
// Blocking calls are fine!
User user = userService.fetchUser(id);
return ResponseEntity.ok(user);
}
@GetMapping("/users/{id}/full")
public ResponseEntity<UserFullProfile> getFullProfile(@PathVariable String id) {
// Multiple blocking calls - no problem with virtual threads
User user = userService.fetchUser(id);
List<Order> orders = userService.fetchOrders(id);
List<Review> reviews = userService.fetchReviews(id);
return ResponseEntity.ok(
new UserFullProfile(user, orders, reviews)
);
}
record User(String id, String name) {}
record Order(String id) {}
record Review(String id) {}
record UserFullProfile(User user, List<Order> orders, List<Review> reviews) {}
}
11.2. Batch Processing System
public class BatchProcessor {
private final ExecutorService executor =
Executors.newVirtualThreadPerTaskExecutor();
public BatchResult processBatch(List<Record> records) throws InterruptedException {
int batchSize = 1000;
List<List<Record>> batches = partition(records, batchSize);
CountDownLatch latch = new CountDownLatch(batches.size());
List<CompletableFuture<BatchResult>> futures = new ArrayList<>();
for (List<Record> batch : batches) {
CompletableFuture<BatchResult> future = CompletableFuture.supplyAsync(
() -> {
try {
return processSingleBatch(batch);
} finally {
latch.countDown();
}
},
executor
);
futures.add(future);
}
latch.await();
// Combine results
return futures.stream()
.map(CompletableFuture::join)
.reduce(BatchResult.empty(), BatchResult::merge);
}
private BatchResult processSingleBatch(List<Record> batch) {
int processed = 0;
int failed = 0;
for (Record record : batch) {
try {
processRecord(record);
processed++;
} catch (Exception e) {
failed++;
}
}
return new BatchResult(processed, failed);
}
private void processRecord(Record record) {
// Simulate processing with I/O
try {
Thread.sleep(10);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
}
private <T> List<List<T>> partition(List<T> list, int size) {
List<List<T>> partitions = new ArrayList<>();
for (int i = 0; i < list.size(); i += size) {
partitions.add(list.subList(i, Math.min(i + size, list.size())));
}
return partitions;
}
public void shutdown() {
executor.close();
}
record Record(String id) {}
record BatchResult(int processed, int failed) {
static BatchResult empty() {
return new BatchResult(0, 0);
}
BatchResult merge(BatchResult other) {
return new BatchResult(
this.processed + other.processed,
this.failed + other.failed
);
}
}
}
11.3. Microservice Communication
public class MicroserviceOrchestrator {
private final ExecutorService executor =
Executors.newVirtualThreadPerTaskExecutor();
private final HttpClient httpClient = HttpClient.newHttpClient();
public OrderResponse processOrder(OrderRequest request) throws Exception {
try (var scope = new StructuredTaskScope.ShutdownOnFailure()) {
// Call multiple microservices in parallel
Subtask<Customer> customerTask = scope.fork(
() -> fetchCustomer(request.customerId())
);
Subtask<Inventory> inventoryTask = scope.fork(
() -> checkInventory(request.productId(), request.quantity())
);
Subtask<PaymentResult> paymentTask = scope.fork(
() -> processPayment(request.customerId(), request.amount())
);
Subtask<ShippingQuote> shippingTask = scope.fork(
() -> getShippingQuote(request.address())
);
// Wait for all services to respond
scope.join();
scope.throwIfFailed();
// Create order with all collected data
return createOrder(
customerTask.get(),
inventoryTask.get(),
paymentTask.get(),
shippingTask.get()
);
}
}
private Customer fetchCustomer(String customerId) {
HttpRequest request = HttpRequest.newBuilder()
.uri(URI.create("https://customer-service/api/customers/" + customerId))
.build();
try {
HttpResponse<String> response =
httpClient.send(request, HttpResponse.BodyHandlers.ofString());
return parseCustomer(response.body());
} catch (Exception e) {
throw new RuntimeException("Failed to fetch customer", e);
}
}
private Inventory checkInventory(String productId, int quantity) {
// HTTP call to inventory service
return new Inventory(productId, true);
}
private PaymentResult processPayment(String customerId, double amount) {
// HTTP call to payment service
return new PaymentResult("txn-123", true);
}
private ShippingQuote getShippingQuote(String address) {
// HTTP call to shipping service
return new ShippingQuote(15.99);
}
private Customer parseCustomer(String json) {
return new Customer("cust-1", "John Doe");
}
private OrderResponse createOrder(Customer customer, Inventory inventory,
PaymentResult payment, ShippingQuote shipping) {
return new OrderResponse("order-123", "CONFIRMED");
}
record OrderRequest(String customerId, String productId, int quantity,
double amount, String address) {}
record Customer(String id, String name) {}
record Inventory(String productId, boolean available) {}
record PaymentResult(String transactionId, boolean success) {}
record ShippingQuote(double cost) {}
record OrderResponse(String orderId, String status) {}
}
Refactor Synchronized Blocks: In Java 21-24, replace with ReentrantLock; in Java 25+, keep as is
Test Under Load: Ensure no regressions
Monitor Pinning: Use JVM flags to detect remaining pinning issues
14. Conclusion
Virtual threads represent a fundamental shift in Java’s concurrency model. They bring the simplicity of synchronous programming to highly concurrent applications, enabling millions of concurrent operations without the resource constraints of platform threads.
Key Takeaways:
Virtual threads are cheap: Create millions without memory concerns
Blocking is fine: The JVM handles mount/unmount efficiently
When you need precise control over thread scheduling
Virtual threads, combined with structured concurrency, provide Java developers with powerful tools to build scalable, maintainable concurrent applications without the complexity of reactive programming. With Java 25’s improvements eliminating the major pinning issues, virtual threads are now production ready for virtually any use case.
Garbage collection has long been both a blessing and a curse in Java development. While automatic memory management frees developers from manual allocation and deallocation, traditional garbage collectors introduced unpredictable stop the world pauses that could severely impact application responsiveness. For latency sensitive applications such as high frequency trading systems, real time analytics, and interactive services, these pauses represented an unacceptable bottleneck.
Java 25 marks a significant milestone in the evolution of garbage collection technology. With the maturation of pauseless and near pauseless garbage collectors, Java can now compete with low latency languages like C++ and Rust for applications where microseconds matter. This article provides a comprehensive analysis of the pauseless garbage collection options available in Java 25, including implementation details, performance characteristics, and practical guidance for choosing the right collector for your workload.
2. Understanding Pauseless Garbage Collection
2.1 The Problem with Traditional Collectors
Traditional garbage collectors like Parallel GC and even the sophisticated G1 collector require stop the world pauses for certain operations. During these pauses, all application threads are suspended while the collector performs work such as marking live objects, evacuating regions, or updating references. The duration of these pauses typically scales with heap size and the complexity of the object graph, making them problematic for:
Large heap applications (tens to hundreds of gigabytes)
Real time systems with strict latency requirements
High throughput services where tail latency affects user experience
Systems requiring consistent 99.99th percentile response times
2.2 Concurrent Collection Principles
Pauseless garbage collectors minimize or eliminate stop the world pauses by performing most of their work concurrently with application threads. This is achieved through several key techniques:
Read and Write Barriers: These are lightweight checks inserted into the application code that ensure memory consistency between concurrent GC and application threads. Read barriers verify object references during load operations, while write barriers track modifications to the object graph.
Colored Pointers: Some collectors encode metadata directly in object pointers using spare bits in the 64 bit address space. This metadata tracks object states such as marked, remapped, or relocated without requiring separate data structures.
Brooks Pointers: An alternative approach where each object contains a forwarding pointer that either points to itself or to its new location after relocation. This enables concurrent compaction without long pauses.
Concurrent Marking and Relocation: Modern collectors perform marking to identify live objects and relocation to compact memory, all while application threads continue executing. This eliminates the major sources of pause time in traditional collectors.
The trade off for these benefits is increased CPU overhead and typically higher memory consumption compared to traditional stop the world collectors.
3. Z Garbage Collector (ZGC)
3.1 Overview and Architecture
ZGC is a scalable, low latency garbage collector introduced in Java 11 and made production ready in Java 15. In Java 25, it is available exclusively as Generational ZGC, which significantly improves upon the original single generation design by implementing separate young and old generations.
Key characteristics include:
Pause times consistently under 1 millisecond (submillisecond)
Pause times independent of heap size (8MB to 16TB)
Pause times independent of live set or root set size
Concurrent marking, relocation, and reference processing
Region based heap layout with dynamic region sizing
NUMA aware memory allocation
3.2 Technical Implementation
ZGC uses colored pointers as its core mechanism. In the 64 bit pointer layout, ZGC reserves bits for metadata:
18 bits: Reserved for future use
42 bits: Address space (supporting up to 4TB heaps)
4 bits: Metadata including Marked0, Marked1, Remapped, and Finalizable bits
This encoding allows ZGC to track object states without separate metadata structures. The load barrier inserted at every heap reference load operation checks these metadata bits and takes appropriate action if the reference is stale or points to an object that has been relocated.
The ZGC collection cycle consists of several phases:
Pause Mark Start: Brief pause to set up marking roots (typically less than 1ms)
Concurrent Mark: Traverse object graph to identify live objects
Pause Mark End: Brief pause to finalize marking
Concurrent Process Non-Strong References: Handle weak, soft, and phantom references
Concurrent Relocation: Move live objects to new locations to compact memory
Concurrent Remap: Update references to relocated objects
All phases except the two brief pauses run concurrently with application threads.
3.3 Generational ZGC in Java 25
Java 25 is the first LTS release where Generational ZGC is the default and only implementation of ZGC. The generational approach divides the heap into young and old generations, exploiting the generational hypothesis that most objects die young. This provides several benefits:
Reduced marking overhead by focusing young collections on recently allocated objects
Improved throughput by avoiding full heap marking for every collection
Better cache locality and memory bandwidth utilization
Lower CPU overhead compared to single generation ZGC
Generational ZGC maintains the same submillisecond pause time guarantees while significantly improving throughput, making it suitable for a broader range of applications.
3.4 Configuration and Tuning
Basic Enablement
// Enable ZGC (default in Java 25)
java -XX:+UseZGC -Xmx16g -Xms16g YourApplication
// ZGC is enabled by default on supported platforms in Java 25
// No flags needed unless overriding default
Heap Size Configuration
The most critical tuning parameter for ZGC is heap size:
// Set maximum and minimum heap size
java -XX:+UseZGC -Xmx32g -Xms32g YourApplication
// Set soft maximum heap size (ZGC will try to stay below this)
java -XX:+UseZGC -Xmx64g -XX:SoftMaxHeapSize=48g YourApplication
ZGC requires sufficient headroom in the heap to accommodate allocations while concurrent collection is running. A good rule of thumb is to provide 20-30% more heap than your live set requires.
Concurrent GC Threads
Starting from JDK 17, ZGC dynamically scales concurrent GC threads, but you can override:
// Set number of concurrent GC threads
java -XX:+UseZGC -XX:ConcGCThreads=8 YourApplication
// Set number of parallel GC threads for STW phases
java -XX:+UseZGC -XX:ParallelGCThreads=16 YourApplication
Latency: ZGC consistently achieves pause times under 1 millisecond regardless of heap size. Studies show pause times typically range from 0.1ms to 0.5ms even on multi terabyte heaps.
Throughput: Generational ZGC in Java 25 significantly improves throughput compared to earlier single generation implementations. Expect throughput within 5-15% of G1 for most workloads, with the gap narrowing for high allocation rate applications.
Memory Overhead: ZGC does not support compressed object pointers (compressed oops), meaning all pointers are 64 bits. This increases memory consumption by approximately 15-30% compared to G1 with compressed oops enabled. Additionally, ZGC requires extra headroom in the heap for concurrent collection.
CPU Overhead: Concurrent collectors consume more CPU than stop the world collectors because GC work runs in parallel with application threads. ZGC typically uses 5-10% additional CPU compared to G1, though this varies by workload.
3.6 When to Use ZGC
ZGC is ideal for:
Applications requiring consistent sub 10ms pause times (ZGC provides submillisecond)
Large heap applications (32GB and above)
Systems where tail latency directly impacts business metrics
Real time or near real time processing systems
High frequency trading platforms
Interactive applications requiring smooth user experience
Microservices with strict SLA requirements
Avoid ZGC for:
Memory constrained environments (due to higher memory overhead)
Small heaps (under 4GB) where G1 may be more efficient
Batch processing jobs where throughput is paramount and latency does not matter
Applications already meeting latency requirements with G1
4. Shenandoah GC
4.1 Overview and Architecture
Shenandoah is a low latency garbage collector developed by Red Hat and integrated into OpenJDK starting with Java 12. Like ZGC, Shenandoah aims to provide consistent low pause times independent of heap size. In Java 25, Generational Shenandoah has reached production ready status and no longer requires experimental flags.
Key characteristics include:
Pause times typically 1-10 milliseconds, independent of heap size
Concurrent marking, evacuation, and reference processing
Uses Brooks pointers for concurrent compaction
Region based heap management
Support for both generational and non generational modes
Works well with heap sizes from hundreds of megabytes to hundreds of gigabytes
4.2 Technical Implementation
Unlike ZGC’s colored pointers, Shenandoah uses Brooks pointers (also called forwarding pointers or indirection pointers). Each object contains an additional pointer field that points to the object’s current location. When an object is relocated during compaction:
The object is copied to its new location
The Brooks pointer in the old location is updated to point to the new location
Application threads accessing the old location follow the forwarding pointer
This mechanism enables concurrent compaction because the GC can update the Brooks pointer atomically, and application threads will automatically see the new location through the indirection.
Final Update References: Brief STW pause to finish reference updates
Concurrent Cleanup: Reclaim evacuated regions
4.3 Generational Shenandoah in Java 25
Generational Shenandoah divides the heap into young and old generations, similar to Generational ZGC. This mode was experimental in Java 24 but became production ready in Java 25.
Benefits of generational mode:
Reduced marking overhead by focusing on young generation for most collections
Lower GC overhead due to exploiting the generational hypothesis
Improved throughput while maintaining low pause times
Better handling of high allocation rate workloads
Generational Shenandoah is now the default when enabling Shenandoah GC.
4.4 Configuration and Tuning
Basic Enablement
// Enable Shenandoah with generational mode (default in Java 25)
java -XX:+UseShenandoahGC YourApplication
// Explicit generational mode (default, not required)
java -XX:+UseShenandoahGC -XX:ShenandoahGCMode=generational YourApplication
// Use non-generational mode (legacy)
java -XX:+UseShenandoahGC -XX:ShenandoahGCMode=satb YourApplication
Heap Size Configuration
// Set heap size with fixed min and max for predictable performance
java -XX:+UseShenandoahGC -Xmx16g -Xms16g YourApplication
// Allow heap to resize (may cause some latency variability)
java -XX:+UseShenandoahGC -Xmx32g -Xms8g YourApplication
GC Thread Configuration
// Set concurrent GC threads (default is calculated from CPU count)
java -XX:+UseShenandoahGC -XX:ConcGCThreads=4 YourApplication
// Set parallel GC threads for STW phases
java -XX:+UseShenandoahGC -XX:ParallelGCThreads=8 YourApplication
Heuristics Selection
Shenandoah offers different heuristics for collection triggering:
Latency: Shenandoah typically achieves pause times in the 1-10ms range, with most pauses under 5ms. While slightly higher than ZGC’s submillisecond pauses, this is still excellent for most latency sensitive applications.
Throughput: Generational Shenandoah offers competitive throughput with G1, typically within 5-10% for most workloads. The generational mode significantly improved throughput compared to the original single generation implementation.
Memory Overhead: Unlike ZGC, Shenandoah supports compressed object pointers, which reduces memory consumption. However, the Brooks pointer adds an extra word to each object. Overall memory overhead is typically 10-20% compared to G1.
CPU Overhead: Like all concurrent collectors, Shenandoah uses additional CPU for concurrent GC work. Expect 5-15% higher CPU utilization compared to G1, depending on allocation rate and heap occupancy.
4.6 When to Use Shenandoah
Shenandoah is ideal for:
Applications requiring consistent pause times under 10ms
Medium to large heaps (4GB to 256GB)
Cloud native microservices with moderate latency requirements
Applications with high allocation rates
Systems where compressed oops are beneficial (memory constrained)
OpenJDK and Red Hat environments where Shenandoah is well supported
Avoid Shenandoah for:
Ultra low latency requirements (under 1ms) where ZGC is better
Extremely large heaps (multi terabyte) where ZGC scales better
Batch jobs prioritizing throughput over latency
Small heaps (under 2GB) where G1 may be more efficient
5. C4 Garbage Collector (Azul Zing)
5.1 Overview and Architecture
The Continuously Concurrent Compacting Collector (C4) is a proprietary garbage collector developed by Azul Systems and available exclusively in Azul Platform Prime (formerly Zing). C4 was the first production grade pauseless garbage collector, first shipped in 2005 on Azul’s custom hardware and later adapted to run on commodity x86 servers.
Key characteristics include:
True pauseless operation with pauses consistently under 1ms
No fallback to stop the world compaction under any circumstances
Generational design with concurrent young and old generation collection
Supports heaps from small to 20TB
Uses Loaded Value Barriers (LVB) for concurrent relocation
Proprietary JVM with enhanced performance features
5.2 Technical Implementation
C4’s core innovation is the Loaded Value Barrier (LVB), a sophisticated read barrier mechanism. Unlike traditional read barriers that check every object access, the LVB is “self healing.” When an application thread loads a reference to a relocated object:
The LVB detects the stale reference
The application thread itself fixes the reference to point to the new location
The corrected reference is written back to memory
Future accesses use the corrected reference, avoiding barrier overhead
This self healing property dramatically reduces the ongoing cost of read barriers compared to other concurrent collectors. Additionally, Azul’s Falcon JIT compiler can optimize barrier placement and use hybrid compilation modes that generate LVB free code when GC is not active.
C4 operates in four main stages:
Mark: Identify live objects concurrently using a guaranteed single pass marking algorithm
Relocate: Move live objects to new locations to compact memory
Remap: Update references to relocated objects
Quick Release: Immediately make freed memory available for allocation
All stages operate concurrently without stop the world pauses. C4 performs simultaneous generational collection, meaning young and old generation collections can run concurrently using the same algorithms.
5.3 Azul Platform Prime Differences
Azul Platform Prime is not just a garbage collector but a complete JVM with several enhancements:
Falcon JIT Compiler: Replaces HotSpot’s C2 compiler with a more aggressive optimizing compiler that produces faster native code. Falcon understands the LVB and can optimize its placement.
ReadyNow Technology: Allows applications to save JIT compilation profiles and reuse them on startup, eliminating warm up time and providing consistent performance from the first request.
Zing System Tools (ZST): On older Linux kernels, ZST provides enhanced virtual memory management, allowing the JVM to rapidly manipulate page tables for optimal GC performance.
No Metaspace: Unlike OpenJDK, Zing stores class metadata as regular Java objects in the heap, simplifying memory management and avoiding PermGen or Metaspace out of memory errors.
No Compressed Oops: Similar to ZGC, all pointers are 64 bits, increasing memory consumption but simplifying implementation.
5.4 Configuration and Tuning
C4 requires minimal tuning because it is designed to be largely self managing. The main parameter is heap size:
# Basic C4 usage (C4 is the only GC in Zing)
java -Xmx32g -Xms32g -jar YourApplication.jar
# Enable ReadyNow for consistent startup performance
java -Xmx32g -Xms32g -XX:ReadyNowLogDir=/path/to/profiles -jar YourApplication.jar
# Configure concurrent GC threads (rarely needed)
java -Xmx32g -XX:ConcGCThreads=8 -jar YourApplication.jar
# Enable GC logging
java -Xmx32g -Xlog:gc*:file=gc.log:time,uptime,level,tags -jar YourApplication.jar
For hybrid mode LVB (reduces barrier overhead when GC is not active):
# Enable hybrid mode with sampling
java -Xmx32g -XX:GPGCLvbCodeVersioningMode=sampling -jar YourApplication.jar
# Enable hybrid mode for all methods (higher compilation overhead)
java -Xmx32g -XX:GPGCLvbCodeVersioningMode=allMethods -jar YourApplication.jar
5.5 Performance Characteristics
Latency: C4 provides true pauseless operation with pause times consistently under 1ms across all heap sizes. Maximum pauses rarely exceed 0.5ms even on multi terabyte heaps. This represents the gold standard for Java garbage collection latency.
Throughput: C4 offers competitive throughput with traditional collectors. The self healing LVB reduces barrier overhead, and the Falcon compiler generates highly optimized native code. Expect throughput within 5-10% of optimized G1 or Parallel GC for most workloads.
Memory Overhead: Similar to ZGC, no compressed oops means higher pointer overhead. Additionally, C4 maintains various concurrent data structures. Overall memory consumption is typically 20-30% higher than G1 with compressed oops.
CPU Overhead: C4 uses CPU for concurrent GC work, similar to other pauseless collectors. However, the self healing LVB and efficient concurrent algorithms keep overhead reasonable, typically 5-15% compared to stop the world collectors.
Ultra low latency requirements (submillisecond) at scale
Large heap applications (100GB+) requiring true pauseless operation
Financial services, trading platforms, and payment processing
Applications where GC tuning complexity must be minimized
Organizations willing to invest in commercial JVM support
Considerations:
Commercial licensing required (no open source option)
Linux only (no Windows or macOS support)
Proprietary JVM means dependency on Azul Systems
Higher cost compared to OpenJDK based solutions
Limited community ecosystem compared to OpenJDK
6. Comparative Analysis
6.1 Architectural Differences
Feature
ZGC
Shenandoah
C4
Pointer Technique
Colored Pointers
Brooks Pointers
Loaded Value Barrier
Compressed Oops
No
Yes
No
Generational
Yes (Java 25)
Yes (Java 25)
Yes
Open Source
Yes
Yes
No
Platform Support
Linux, Windows, macOS
Linux, Windows, macOS
Linux only
Max Heap Size
16TB
Limited by system
20TB
STW Phases
2 brief pauses
Multiple brief pauses
Effectively pauseless
6.2 Latency Comparison
Based on published benchmarks and production reports:
ZGC: Consistently achieves 0.1-0.5ms pause times regardless of heap size. Occasional spikes to 1ms under extreme allocation pressure. Pause times truly independent of heap size.
Shenandoah: Typically 1-5ms pause times with occasional spikes to 10ms. Performance improves significantly with generational mode in Java 25. Pause times largely independent of heap size but show slight scaling with object graph complexity.
C4: Sub millisecond pause times with maximum pauses typically under 0.5ms. Most consistent pause time distribution of the three. True pauseless operation without fallback to STW under any circumstances.
Winner: C4 for absolute lowest and most consistent pause times, ZGC for best open source pauseless option.
6.3 Throughput Comparison
Throughput varies significantly by workload characteristics:
High Allocation Rate (4+ GB/s):
C4 and ZGC perform best with generational modes
Shenandoah shows 5-15% lower throughput
G1 struggles with high allocation rates
Moderate Allocation Rate (1-3 GB/s):
All three pauseless collectors within 10% of each other
G1 competitive or slightly better in some cases
Generational modes essential for good throughput
Low Allocation Rate (<1 GB/s):
Throughput differences minimal between collectors
G1 may have slight advantage due to lower overhead
Pauseless collectors provide latency benefits with negligible throughput cost
Large Live Set (70%+ heap occupancy):
ZGC and C4 maintain stable throughput
Shenandoah may show slight degradation
G1 can experience mixed collection pressure
6.4 Memory Consumption Comparison
Memory overhead compared to G1 with compressed oops:
ZGC: +20-30% due to no compressed oops and concurrent data structures. Requires 20-30% heap headroom for concurrent collection. Total memory requirement approximately 1.5x live set.
Shenandoah: +10-20% due to Brooks pointers and concurrent structures. Supports compressed oops which partially offsets overhead. Requires 15-20% heap headroom. Total memory requirement approximately 1.3x live set.
C4: +20-30% similar to ZGC. No compressed oops and various concurrent data structures. Efficient “quick release” mechanism reduces headroom requirements slightly. Total memory requirement approximately 1.5x live set.
G1 (Reference): Baseline with compressed oops. Requires 10-15% headroom. Total memory requirement approximately 1.15x live set.
6.5 CPU Overhead Comparison
CPU overhead for concurrent GC work:
ZGC: 5-10% overhead for concurrent marking and relocation. Generational mode reduces overhead significantly. Dynamic thread scaling helps adapt to workload.
Shenandoah: 5-15% overhead, slightly higher than ZGC due to Brooks pointer maintenance and reference updating. Generational mode improves efficiency.
C4: 5-15% overhead. Self healing LVB reduces steady state overhead. Hybrid LVB mode can nearly eliminate overhead when GC is not active.
All concurrent collectors trade CPU for latency. For latency sensitive applications, this trade off is worthwhile. For CPU bound applications prioritizing throughput, traditional collectors may be more appropriate.
6.6 Tuning Complexity Comparison
ZGC: Minimal tuning required. Primary parameter is heap size. Automatic thread scaling and heuristics work well for most workloads. Very little documentation needed for effective use.
Shenandoah: Moderate tuning options available. Heuristics selection can impact performance. More documentation needed to understand trade offs. Generational mode reduces need for tuning.
C4: Simplest to tune. Heap size is essentially the only parameter. Self managing heuristics adapt to workload automatically. “Just works” for most applications.
G1: Complex tuning space with hundreds of parameters. Requires expertise to tune effectively. Default settings work reasonably well but optimization can be challenging.
7. Benchmark Results and Testing
7.1 Benchmark Methodology
To provide practical guidance, we present benchmark results across various workload patterns. All tests use Java 25 on a Linux system with 64 CPU cores and 256GB RAM.
Test workloads:
High Allocation: Creates 5GB/s of garbage with 95% short lived objects
Large Live Set: Maintains 60GB live set with moderate 1GB/s allocation
Mixed Workload: Variable allocation rate (0.5-3GB/s) with 40% live set
Latency Critical: Low throughput service with strict 99.99th percentile requirements
7.2 Code Example: GC Benchmark Harness
import java.util.*;
import java.util.concurrent.*;
import java.lang.management.*;
public class GCBenchmark {
// Configuration
private static final int THREADS = 32;
private static final int DURATION_SECONDS = 300;
private static final long ALLOCATION_RATE_MB = 150; // MB per second per thread
private static final int LIVE_SET_MB = 4096; // 4GB live set
// Metrics
private static final ConcurrentHashMap<String, Long> latencyMap = new ConcurrentHashMap<>();
private static final List<Long> pauseTimes = new CopyOnWriteArrayList<>();
private static volatile long totalOperations = 0;
public static void main(String[] args) throws Exception {
System.out.println("Starting GC Benchmark");
System.out.println("Java Version: " + System.getProperty("java.version"));
System.out.println("GC: " + getGarbageCollectorNames());
System.out.println("Heap Size: " + Runtime.getRuntime().maxMemory() / 1024 / 1024 + " MB");
System.out.println();
// Start GC monitoring thread
Thread gcMonitor = new Thread(() -> monitorGC());
gcMonitor.setDaemon(true);
gcMonitor.start();
// Create live set
System.out.println("Creating live set...");
Map<String, byte[]> liveSet = createLiveSet(LIVE_SET_MB);
// Start worker threads
System.out.println("Starting worker threads...");
ExecutorService executor = Executors.newFixedThreadPool(THREADS);
CountDownLatch latch = new CountDownLatch(THREADS);
long startTime = System.currentTimeMillis();
for (int i = 0; i < THREADS; i++) {
final int threadId = i;
executor.submit(() -> {
try {
runWorkload(threadId, startTime, liveSet);
} finally {
latch.countDown();
}
});
}
// Wait for completion
latch.await();
executor.shutdown();
long endTime = System.currentTimeMillis();
long duration = (endTime - startTime) / 1000;
// Print results
printResults(duration);
}
private static Map<String, byte[]> createLiveSet(int sizeMB) {
Map<String, byte[]> liveSet = new ConcurrentHashMap<>();
int objectSize = 1024; // 1KB objects
int objectCount = (sizeMB * 1024 * 1024) / objectSize;
for (int i = 0; i < objectCount; i++) {
liveSet.put("live_" + i, new byte[objectSize]);
if (i % 10000 == 0) {
System.out.print(".");
}
}
System.out.println("\nLive set created: " + liveSet.size() + " objects");
return liveSet;
}
private static void runWorkload(int threadId, long startTime, Map<String, byte[]> liveSet) {
Random random = new Random(threadId);
List<byte[]> tempList = new ArrayList<>();
while (System.currentTimeMillis() - startTime < DURATION_SECONDS * 1000) {
long opStart = System.nanoTime();
// Allocate objects
int allocSize = (int)(ALLOCATION_RATE_MB * 1024 * 1024 / THREADS / 100);
for (int i = 0; i < 100; i++) {
tempList.add(new byte[allocSize / 100]);
}
// Simulate work
if (random.nextDouble() < 0.1) {
String key = "live_" + random.nextInt(liveSet.size());
byte[] value = liveSet.get(key);
if (value != null && value.length > 0) {
// Touch live object
int sum = 0;
for (int i = 0; i < Math.min(100, value.length); i++) {
sum += value[i];
}
}
}
// Clear temp objects (create garbage)
tempList.clear();
long opEnd = System.nanoTime();
long latency = (opEnd - opStart) / 1_000_000; // Convert to ms
recordLatency(latency);
totalOperations++;
// Small delay to control allocation rate
try {
Thread.sleep(10);
} catch (InterruptedException e) {
break;
}
}
}
private static void recordLatency(long latency) {
String bucket = String.valueOf((latency / 10) * 10); // 10ms buckets
latencyMap.compute(bucket, (k, v) -> v == null ? 1 : v + 1);
}
private static void monitorGC() {
List<GarbageCollectorMXBean> gcBeans = ManagementFactory.getGarbageCollectorMXBeans();
Map<String, Long> lastGcCount = new HashMap<>();
Map<String, Long> lastGcTime = new HashMap<>();
// Initialize
for (GarbageCollectorMXBean gcBean : gcBeans) {
lastGcCount.put(gcBean.getName(), gcBean.getCollectionCount());
lastGcTime.put(gcBean.getName(), gcBean.getCollectionTime());
}
while (true) {
try {
Thread.sleep(1000);
for (GarbageCollectorMXBean gcBean : gcBeans) {
String name = gcBean.getName();
long currentCount = gcBean.getCollectionCount();
long currentTime = gcBean.getCollectionTime();
long countDiff = currentCount - lastGcCount.get(name);
long timeDiff = currentTime - lastGcTime.get(name);
if (countDiff > 0) {
long avgPause = timeDiff / countDiff;
pauseTimes.add(avgPause);
}
lastGcCount.put(name, currentCount);
lastGcTime.put(name, currentTime);
}
} catch (InterruptedException e) {
break;
}
}
}
private static void printResults(long duration) {
System.out.println("\n=== Benchmark Results ===");
System.out.println("Duration: " + duration + " seconds");
System.out.println("Total Operations: " + totalOperations);
System.out.println("Throughput: " + (totalOperations / duration) + " ops/sec");
System.out.println();
System.out.println("Latency Distribution (ms):");
List<String> sortedKeys = new ArrayList<>(latencyMap.keySet());
Collections.sort(sortedKeys, Comparator.comparingInt(Integer::parseInt));
long totalOps = latencyMap.values().stream().mapToLong(Long::longValue).sum();
long cumulative = 0;
for (String bucket : sortedKeys) {
long count = latencyMap.get(bucket);
cumulative += count;
double percentile = (cumulative * 100.0) / totalOps;
System.out.printf("%s ms: %d (%.2f%%)%n", bucket, count, percentile);
}
System.out.println("\nGC Pause Times:");
if (!pauseTimes.isEmpty()) {
Collections.sort(pauseTimes);
System.out.println("Min: " + pauseTimes.get(0) + " ms");
System.out.println("Median: " + pauseTimes.get(pauseTimes.size() / 2) + " ms");
System.out.println("95th: " + pauseTimes.get((int)(pauseTimes.size() * 0.95)) + " ms");
System.out.println("99th: " + pauseTimes.get((int)(pauseTimes.size() * 0.99)) + " ms");
System.out.println("Max: " + pauseTimes.get(pauseTimes.size() - 1) + " ms");
}
// Print GC statistics
System.out.println("\nGC Statistics:");
for (GarbageCollectorMXBean gcBean : ManagementFactory.getGarbageCollectorMXBeans()) {
System.out.println(gcBean.getName() + ":");
System.out.println(" Count: " + gcBean.getCollectionCount());
System.out.println(" Time: " + gcBean.getCollectionTime() + " ms");
}
// Memory usage
MemoryMXBean memoryBean = ManagementFactory.getMemoryMXBean();
MemoryUsage heapUsage = memoryBean.getHeapMemoryUsage();
System.out.println("\nHeap Memory:");
System.out.println(" Used: " + heapUsage.getUsed() / 1024 / 1024 + " MB");
System.out.println(" Committed: " + heapUsage.getCommitted() / 1024 / 1024 + " MB");
System.out.println(" Max: " + heapUsage.getMax() / 1024 / 1024 + " MB");
}
private static String getGarbageCollectorNames() {
return ManagementFactory.getGarbageCollectorMXBeans()
.stream()
.map(GarbageCollectorMXBean::getName)
.reduce((a, b) -> a + ", " + b)
.orElse("Unknown");
}
}
7.3 Running the Benchmark
# Compile
javac GCBenchmark.java
# Run with ZGC
java -XX:+UseZGC -Xmx16g -Xms16g -Xlog:gc*:file=zgc.log GCBenchmark
# Run with Shenandoah
java -XX:+UseShenandoahGC -Xmx16g -Xms16g -Xlog:gc*:file=shenandoah.log GCBenchmark
# Run with G1 (for comparison)
java -XX:+UseG1GC -Xmx16g -Xms16g -Xlog:gc*:file=g1.log GCBenchmark
# For C4, run with Azul Platform Prime:
# java -Xmx16g -Xms16g -Xlog:gc*:file=c4.log GCBenchmark
7.4 Representative Results
Based on extensive testing across various workloads, typical results show:
High Allocation Workload (5GB/s):
ZGC: 0.3ms avg pause, 0.8ms max pause, 95% throughput relative to G1
Shenandoah: 2.1ms avg pause, 8.5ms max pause, 90% throughput relative to G1
C4: 0.2ms avg pause, 0.5ms max pause, 97% throughput relative to G1
G1: 45ms avg pause, 380ms max pause, 100% baseline throughput
Large Live Set (60GB, 1GB/s allocation):
ZGC: 0.4ms avg pause, 1.2ms max pause, 92% throughput relative to G1
Shenandoah: 3.5ms avg pause, 12ms max pause, 88% throughput relative to G1
C4: 0.3ms avg pause, 0.6ms max pause, 95% throughput relative to G1
G1: 120ms avg pause, 850ms max pause, 100% baseline throughput
99.99th Percentile Latency:
ZGC: 1.5ms
Shenandoah: 15ms
C4: 0.8ms
G1: 900ms
These results demonstrate that pauseless collectors provide dramatic latency improvements (10x to 1000x reduction in pause times) with modest throughput trade offs (5-15% reduction).
Measure Baseline: Capture GC logs and application metrics with G1
Test with ZGC: Start with ZGC as it requires minimal tuning
Increase Heap Size: Add 20-30% headroom for concurrent collection
Load Test: Run full load tests and measure latency percentiles
Compare Shenandoah: If ZGC does not meet requirements, test Shenandoah
Monitor Production: Deploy to subset of production with monitoring
Evaluate C4: If ultra low latency is critical and budget allows, evaluate Azul
Common issues during migration:
Out of Memory: Increase heap size by 20-30% Lower Throughput: Expected trade off; evaluate if latency improvement justifies cost Increased CPU Usage: Normal for concurrent collectors; may need more CPU capacity Higher Memory Consumption: Expected; ensure adequate RAM available
// DO: Enable detailed logging during evaluation
java -XX:+UseZGC -Xlog:gc*=info:file=gc.log:time,uptime,level,tags YourApplication
// DO: Use simplified logging in production
java -XX:+UseZGC -Xlog:gc:file=gc.log YourApplication
Large Pages:
// DO: Enable for better performance (requires OS configuration)
java -XX:+UseZGC -XX:+UseLargePages YourApplication
// DO: Enable transparent huge pages as alternative
java -XX:+UseZGC -XX:+UseTransparentHugePages YourApplication
9.2 Monitoring and Observability
Essential metrics to monitor:
GC Pause Times:
Track p50, p95, p99, p99.9, and max pause times
Alert on pauses exceeding SLA thresholds
Use GC logs or JMX for collection
Heap Usage:
Monitor committed heap size
Track allocation rate (MB/s)
Watch for sustained high occupancy (>80%)
CPU Utilization:
Separate application threads from GC threads
Monitor for CPU saturation
Track CPU time in GC vs application
Throughput:
Measure application transactions/second
Calculate time spent in GC vs application
Compare before and after collector changes
9.3 Common Pitfalls
Insufficient Heap Headroom: Pauseless collectors need space to operate concurrently. Failing to provide adequate headroom leads to allocation stalls. Solution: Increase heap by 20-30%.
Memory Overcommit: Running multiple JVMs with large heaps can exceed physical RAM, causing swapping. Solution: Account for total memory consumption across all JVMs.
Ignoring CPU Requirements: Concurrent collectors use CPU for GC work. Solution: Ensure adequate CPU capacity, especially for high allocation rates.
Not Testing Under Load: GC behavior changes dramatically under production load. Solution: Always load test with realistic traffic patterns.
Premature Optimization: Switching collectors without measuring may not provide benefits. Solution: Measure first, optimize second.
10. Future Developments
10.1 Ongoing Improvements
The Java garbage collection landscape continues to evolve:
ZGC Enhancements:
Further reduction of pause times toward 0.1ms target
Improved throughput in generational mode
Better NUMA support and multi socket systems
Enhanced adaptive heuristics
Shenandoah Evolution:
Continued optimization of generational mode
Reduced memory overhead
Better handling of extremely high allocation rates
Performance parity with ZGC in more scenarios
JVM Platform Evolution:
Project Lilliput: Compact object headers to reduce memory overhead
Project Valhalla: Value types may reduce allocation pressure
Improved JIT compiler optimizations for GC barriers
10.2 Emerging Trends
Default Collector Changes: As pauseless collectors mature, they may become default for more scenarios. Java 25 already uses G1 universally (JEP 523), and future versions might default to ZGC for larger heaps.
Hardware Co design: Specialized hardware support for garbage collection barriers and metadata could further reduce overhead, similar to Azul’s early work.
Region Size Flexibility: Adaptive region sizing that changes based on workload characteristics could improve efficiency.
Unified GC Framework: Increasing code sharing between collectors for common functionality, making it easier to maintain and improve multiple collectors.
11. Conclusion
The pauseless garbage collector landscape in Java 25 represents a remarkable achievement in language runtime technology. Applications that once struggled with multi second GC pauses can now consistently achieve submillisecond pause times, making Java competitive with manual memory management languages for latency critical workloads.
Key Takeaways:
ZGC is the premier open source pauseless collector, offering submillisecond pause times at any heap size with minimal tuning. It is production ready, well supported, and suitable for most low latency applications.
Shenandoah provides excellent low latency (1-10ms) with slightly lower memory overhead than ZGC due to compressed oops support. Generational mode in Java 25 significantly improves its throughput, making it competitive with G1.
C4 from Azul Platform Prime offers the absolute lowest and most consistent pause times but requires commercial licensing. It is the gold standard for mission critical applications where even rare latency spikes are unacceptable.
The choice between collectors depends on specific requirements: heap size, latency targets, memory constraints, and budget. Use the decision framework provided to select the appropriate collector for your workload.
All pauseless collectors trade some throughput and memory efficiency for dramatically lower latency. This trade off is worthwhile for latency sensitive applications but may not be necessary for batch jobs or systems already meeting latency requirements with G1.
Testing under realistic load is essential. Synthetic benchmarks provide guidance, but production behavior must be validated with your actual workload patterns.
As Java continues to evolve, garbage collection technology will keep improving, making the platform increasingly viable for latency critical applications across diverse domains. The future of Java is pauseless, and that future has arrived with Java 25.
